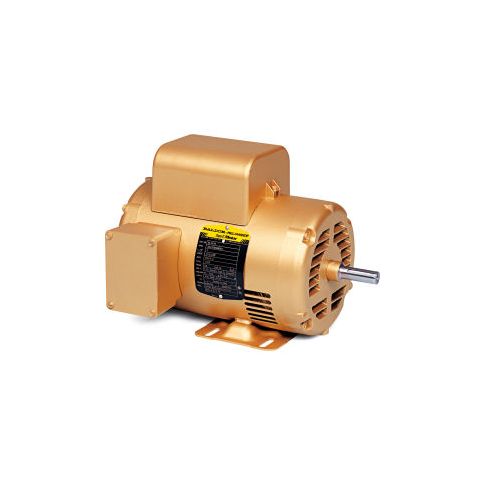

Baldor-Reliance CEL11304 .5HP 56C Frame 1800RPM 115/230V ODP C-Face Rigid Premium Efficiency CEL11304
Baldor-Reliance CEL11304 .5HP 56C Frame 1800RPM 115/230V ODP, C-Face Rigid, Premium Efficiency
Baldor-Reliance Single Phase ODP motors are in accordance with the Small Motor Rule implemented by the Department of Energy. These motors feature copper windings, dynamically balanced rotors, ball bearings, heavy-gauge steel frames, and other industrial quality features.
Features:
Baldor-Reliance Single Phase ODP motors are in accordance with the Small Motor Rule implemented by the Department of Energy. These motors feature copper windings, dynamically balanced rotors, ball bearings, heavy-gauge steel frames, and other industrial quality features.
Features:
- Compressors
- Pumps
- Conveyors
- Machine Tools
- Air Handling
- And many more
Product Specifications
- HORSEPOWER1/2
- ENCLOSUREODP
- FRAME56C
- MOUNTINGC-Face Rigid
- NAMEPLATE RPM1725
- PHASE1
- MOTOR RPM 60Hz1800
- VOLTAGE115/230
- HERTZ60
- DUTYContinuous
- SERVICE FACTOR1.25
- EFFICIENCY TYPEPremium
- AMBIENT TEMP C40
- WEIGHT32
- RPM RANGE1701-1800
- WARRANTY3 Years
- FL EFFICIENCY76.2
- DEGREE OF PROTECTIONIP22
- INSULATION CLASSB
- FL AMPS4.7/2.35
- DRIVE END BEARING SIZE6203
- OPPOSITE END BEARING SIZE6203
- BRANDBaldor-Reliance
- MANUFACTURER PART #CEL11304
- is_motorYes
- ENCLOSURE TYPEOpen/Drip Proof
- POWER FACTOR AT FULL LOAD 98
- POLES4
