Baldor-Reliance Motor CHC445A .75 AIR OVERHP 1700RPM 1PH 60HZ 56 1728C CHC445A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-8061B38

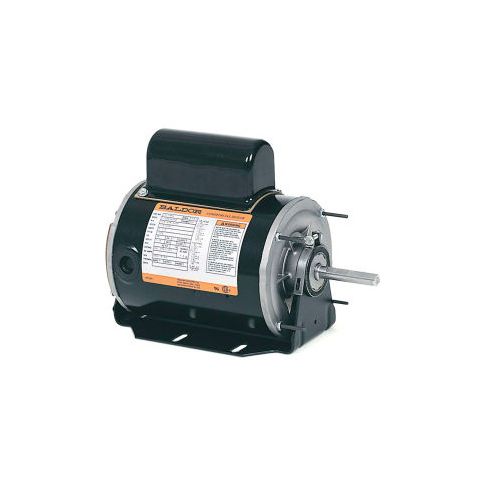

Baldor-Reliance Motor CHC445A .75 AIR OVERHP 1700RPM 1PH 60HZ 56 1728C CHC445A
Baldor-Reliance Single Phase HVAC Motor
This TEAO (Totally Enclosed Air Over), 0.75HP, 1700RPM, 115/230V unit has rugged steel frame, double sealed ball bearings, corrosion resistant expoxy finish, 1 extended thru bolts and permanent spit capacitor.
This TEAO (Totally Enclosed Air Over), 0.75HP, 1700RPM, 115/230V unit has rugged steel frame, double sealed ball bearings, corrosion resistant expoxy finish, 1 extended thru bolts and permanent spit capacitor.
Product Specifications
- BRANDBaldor-Reliance
- MANUFACTURERS PART NUMBERCHC445A
- HORSEPOWER3/4
- MOTOR RPM 60Hz1700
- VOLTAGE115/230
- PHASE1
- FRAME56
- ENCLOSURE TYPETotally Enclosed
- HERTZ60
- SPEEDS1
- ROTATIONCCW/CW
- THERMAL PROTECTIONAutomatic
- RATED RPM1700
- MOUNTINGResilient
- FULL LOAD AMPS7.4/3.7
- SHAFT DIAMETER0.625
- BEARING TYPESealed
- DRIVE END BEARING SIZE6311
- INSULATION CLASSB
- SERVICE FACTOR1
- AMBIENT TEMP C40
- LENGTH LESS SHAFT INCHES16.5
- DUTYCONT
- APPROVALS OR CERTIFICATIONSCSA; UR
- OVERALL LENGTH13.58
- is_motorYes
- LENGTH INCHES16.5
- WIDTH INCHES11.75
- HEIGHT INCHES11.75
- WEIGHT LBS35
- RPM RANGE1501-1700
- SHAFT DIAMETER INCHES0.625
- SHAFT LENGTH INCHES0.625
- FL EFFICIENCY74
- DESIGN CODE-
- FL AMPS7.2/3.6
- POLES4
- FRAME SIZE56YZ
- DRIVE END FLANGEStandard
- ENCLOSURETEAO
Additional Information
- UPC: 781568401392
- UNSPSC: 26101200
- Brand: Baldor Electric Co.
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: AR
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 28.00
Product info last updated on July 17, 2024 1:47pm UTC
Category: HVAC Electric Motors
