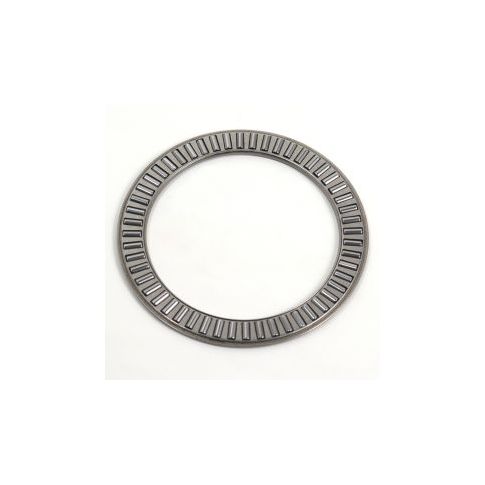

TRITAN NTA2840 Needle Bearing Thrust Roller Assembly Bore 44.45mm NTA2840
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-78455B20
TRITAN NTA2840 Needle Bearing Thrust Roller Assembly Bore 44.45mm NTA2840
Bearings Limited NTA2840 Needle Bearing, Thrust, Roller Assembly, Bore 44.45mm
Needle roller bearings are a type of roller bearings and are classified as either radial or thrust depending on the direction of the load they support. Needle roller bearings include bearings whose rollers slightly exceed the size range of needle rollers as stipulated by ISO. Needle roller bearings include drawn cup, solid radial bearings, and thrust needle bearings. Needle Roller bearings are available in two types: caged and full complement. Drawn cup outer rings are made of carefully selected alloy steel sheet. They are surface-hardened alter precise pressing, giving them a unique structure. The cage of the needle bearing accurately guides the rollers at the pitch diameter of the rollers. The surface of the cage is hardened to reduce frictional torque and increase rigidity and wear resistance.
Needle roller bearings are a type of roller bearings and are classified as either radial or thrust depending on the direction of the load they support. Needle roller bearings include bearings whose rollers slightly exceed the size range of needle rollers as stipulated by ISO. Needle roller bearings include drawn cup, solid radial bearings, and thrust needle bearings. Needle Roller bearings are available in two types: caged and full complement. Drawn cup outer rings are made of carefully selected alloy steel sheet. They are surface-hardened alter precise pressing, giving them a unique structure. The cage of the needle bearing accurately guides the rollers at the pitch diameter of the rollers. The surface of the cage is hardened to reduce frictional torque and increase rigidity and wear resistance.
Product Specifications
- BRANDBearings Limited
- BORE DIAMETER MILLIMETERS44.45
- OUTER DIAMETER MILLIMETERS63.5
- WIDTH MILLIMETERS1.981
- MAXIMUM TEMPERATURE250°F
- MANUFACTURERS PART NUMBERNTA2840
- CAGE MATERIALPressed Steel
- MAX SPEED (RPM)6600
- STATIC LOAD RATING132640
- DYNAMIC LOAD RATING24420
- BEARING TYPENeedle Bearing
Additional Information
- UPC: 00888569031006
- UNSPSC: 31171507
- Brand: Bearings Limited
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 0.08
- Package Width: 2.50
- Package Height: 2.50
- Package Weight: 0.53
Product info last updated on May 14, 2024 1:25am UTC
Category: Bearings
