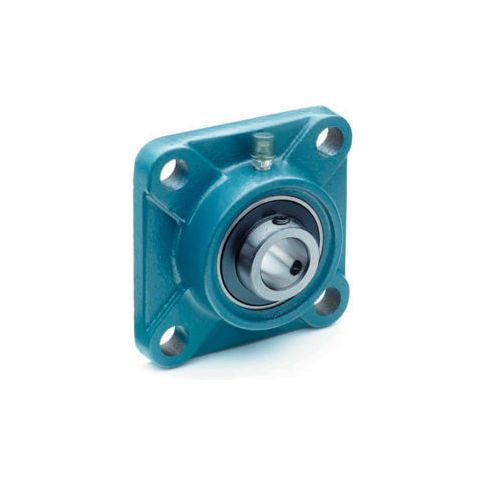

Tritan UCF210-30 Flange Mount Bearing 4 Bolt Flange Set Screw Locking Bore 47.625 mm UCF210-30
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-73219B18
Tritan UCF210-30 Flange Mount Bearing 4 Bolt Flange Set Screw Locking Bore 47.625 mm UCF210-30
Tritan, UCF210-30, Flange Mount Bearing, 4 Bolt Flange, Set Screw Locking, Bore 47.625 mm
Features:
Features:
- Standard duty square flange unit, set screw locking
- Cast-iron housing
- Wide inner ring bearing
- Dual heavy-duty slinger type contact seals
- Anti-Rotation device
- Triple lip seals (R3 suffix) optional
Product Specifications
- BRANDTritan
- INTERNAL RADIAL CLEARANCE0.014 - 0.036
- BORE DIAMETER MILLIMETERS47.625
- WIDTH MILLIMETERS143
- DYNAMIC LOAD RATING (N)7868.31
- STATIC LOAD RATING (N)5215.57
- MAXIMUM TEMPERATURE250 F
- CONSTRUCTIONCast Iron
- MOUNTING HOLE CENTER MILLIMETER111
- NUMBER OF BOLTS4
- BOLT HOLE SIZE1/2" / M14
- OVERALL LENGTH (MM)143
- OVERALL HEIGHT (MM)54.6
- MOUNTING SURFACE TO CENTERLINE OF SHAFT (MM)22
- LOCKING TYPESet Screw
- BEARING TYPEMounted Bearing Unit
- OVERALL WIDTH (MM)143
- INSERTUC210-30
- DESCRIPTION4 Bolt Flange - Wide Inner Ring Insert - Set Screw
- MANUFACTURERS PART NUMBERUCF210-30
- BEARING MATERIALAISI 52100 Steel
Additional Information
- UPC: 00888569052810
- UNSPSC: 31171501
- Brand: Bearings Limited
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 5.63
- Package Width: 5.63
- Package Height: 2.15
- Package Weight: 5.69
Product info last updated on May 14, 2024 6:19pm UTC
Category: Bearings
