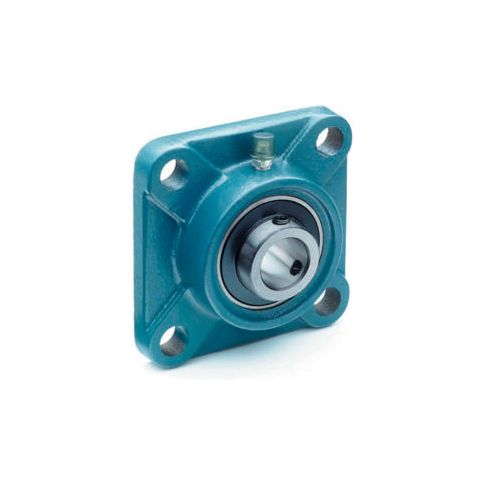

Tritan UCF211-34 Flange Mount Bearing 4 Bolt Flange Set Screw Locking Bore 53.975 mm UCF211-34
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-73373B18
Tritan UCF211-34 Flange Mount Bearing 4 Bolt Flange Set Screw Locking Bore 53.975 mm UCF211-34
Tritan, UCF211-34, Flange Mount Bearing, 4 Bolt Flange, Set Screw Locking, Bore 53.975 mm
Features:
Features:
- Standard duty square flange unit, set screw locking
- Cast-iron housing
- Wide inner ring bearing
- Dual heavy-duty slinger type contact seals
- Anti-Rotation device
- Triple lip seals (R3 suffix) optional
Product Specifications
- BRANDTritan
- INTERNAL RADIAL CLEARANCE0.018 - 0.043
- BORE DIAMETER MILLIMETERS53.975
- WIDTH MILLIMETERS162
- DYNAMIC LOAD RATING (N)9779.19
- STATIC LOAD RATING (N)6564.42
- MAXIMUM TEMPERATURE250 F
- CONSTRUCTIONCast Iron
- MOUNTING HOLE CENTER MILLIMETER130
- NUMBER OF BOLTS4
- BOLT HOLE SIZE5/8" / M16
- OVERALL LENGTH (MM)162
- OVERALL HEIGHT (MM)58.4
- MOUNTING SURFACE TO CENTERLINE OF SHAFT (MM)25
- LOCKING TYPESet Screw
- BEARING TYPEMounted Bearing Unit
- INSERTUC211-34
- OVERALL WIDTH (MM)162
- DESCRIPTION4 Bolt Flange - Wide Inner Ring Insert - Set Screw
- MANUFACTURERS PART NUMBERUCF211-34
- BEARING MATERIALAISI 52100 Steel
Additional Information
- UPC: 00888569052872
- UNSPSC: 31171501
- Brand: Bearings Limited
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 6.38
- Package Width: 6.38
- Package Height: 2.30
- Package Weight: 7.69
Product info last updated on May 10, 2024 3:06pm UTC
Category: Bearings
