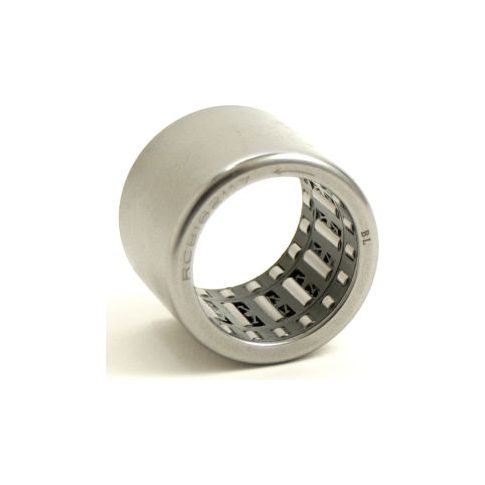

TRITAN RCB101416 Needle Bearing Drawn Cup Roller Clutch & Bearing AssemblyBore 15.875mm RCB101416

Discount: See in Cart
Free Shipping
In Stock
Brand: Bearings Limited
Part #: RCB101416
UPC: 00888569128164
SKU
281-78537B20
59.58 for Minimum Order Qty of 2
$29.79 Each
TRITAN RCB101416 Needle Bearing Drawn Cup Roller Clutch & Bearing AssemblyBore 15.875mm RCB101416
Bearings Limited RCB101416 Needle Bearing, Drawn Cup Roller Clutch & Bearing Assembly,Bore 15.875mm

Needle roller bearings are a type of roller bearings and are classified as either radial or thrust depending on the direction of the load they support. Needle roller bearings include bearings whose rollers slightly exceed the size range of needle rollers as stipulated by ISO. Needle roller bearings include drawn cup, solid radial bearings, and thrust needle bearings. Needle Roller bearings are available in two types: caged and full complement. Drawn cup outer rings are made of carefully selected alloy steel sheet. They are surface-hardened alter precise pressing, giving them a unique structure. The cage of the needle bearing accurately guides the rollers at the pitch diameter of the rollers. The surface of the cage is hardened to reduce frictional torque and increase rigidity and wear resistance.

Product Specifications

  • BRANDBearings Limited
  • BORE DIAMETER MILLIMETERS15.875
  • OUTER DIAMETER MILLIMETERS22.225
  • WIDTH MILLIMETERS25.4
  • MAXIMUM TEMPERATURE250°F
  • MANUFACTURERS PART NUMBERRCB101416
  • CAGE MATERIALPressed Steel
  • MAX SPEED (RPM)13500
  • STATIC LOAD RATING7860
  • DYNAMIC LOAD RATING7770
  • BEARING TYPENeedle Bearing


Additional Information
  • UPC: 00888569128164
  • UNSPSC: 31171512
  • Brand: Bearings Limited
  • Package Quantity: 1
  • Country of Origin: CN
  • FOB Origin: NY
  • Ships by: PARCEL
  • Comes in a kit: No
  • Newly added to catalog: No
  • Item is on Clearance: No
  • Contains Hazardous Materials: No
  • CA Proposition 65 Applies: No
  • Package Length: 0.88
  • Package Width: 1.00
  • Package Height: 0.88
  • Package Weight: 0.05
Product info last updated on May 10, 2024 3:06pm UTC Category: Bearings
