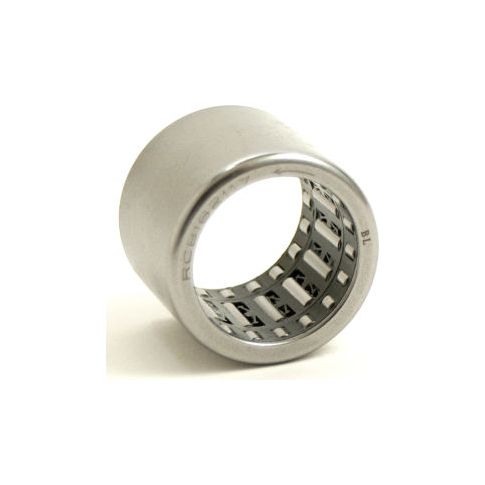

TRITAN RCB162117 Needle Bearing Drawn Cup Roller Clutch & Bearing Assem Bore 1" (25.4mm) RCB162117
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-78573B20
TRITAN RCB162117 Needle Bearing Drawn Cup Roller Clutch & Bearing Assem Bore 1"" (25.4mm) RCB162117
Bearings Limited RCB162117 Needle Bearing, Drawn Cup Roller Clutch & Bearing Assembly, Bore 25.4mm
Needle roller bearings are a type of roller bearings and are classified as either radial or thrust depending on the direction of the load they support. Needle roller bearings include bearings whose rollers slightly exceed the size range of needle rollers as stipulated by ISO. Needle roller bearings include drawn cup, solid radial bearings, and thrust needle bearings. Needle Roller bearings are available in two types: caged and full complement. Drawn cup outer rings are made of carefully selected alloy steel sheet. They are surface-hardened alter precise pressing, giving them a unique structure. The cage of the needle bearing accurately guides the rollers at the pitch diameter of the rollers. The surface of the cage is hardened to reduce frictional torque and increase rigidity and wear resistance.
Needle roller bearings are a type of roller bearings and are classified as either radial or thrust depending on the direction of the load they support. Needle roller bearings include bearings whose rollers slightly exceed the size range of needle rollers as stipulated by ISO. Needle roller bearings include drawn cup, solid radial bearings, and thrust needle bearings. Needle Roller bearings are available in two types: caged and full complement. Drawn cup outer rings are made of carefully selected alloy steel sheet. They are surface-hardened alter precise pressing, giving them a unique structure. The cage of the needle bearing accurately guides the rollers at the pitch diameter of the rollers. The surface of the cage is hardened to reduce frictional torque and increase rigidity and wear resistance.
Product Specifications
- BRANDBearings Limited
- BORE DIAMETER MILLIMETERS25.4
- OUTER DIAMETER MILLIMETERS33.35
- WIDTH MILLIMETERS27
- MAXIMUM TEMPERATURE250°F
- MANUFACTURERS PART NUMBERRCB162117
- CAGE MATERIALPressed Steel
- MAX SPEED (RPM)8400
- STATIC LOAD RATING17000
- DYNAMIC LOAD RATING14850
- BEARING TYPENeedle Bearing
Additional Information
- UPC: 00888569128188
- UNSPSC: 31171512
- Brand: Bearings Limited
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 1.06
- Package Width: 1.31
- Package Height: 1.31
- Package Weight: 0.10
Product info last updated on May 10, 2024 3:06pm UTC
Category: Bearings
