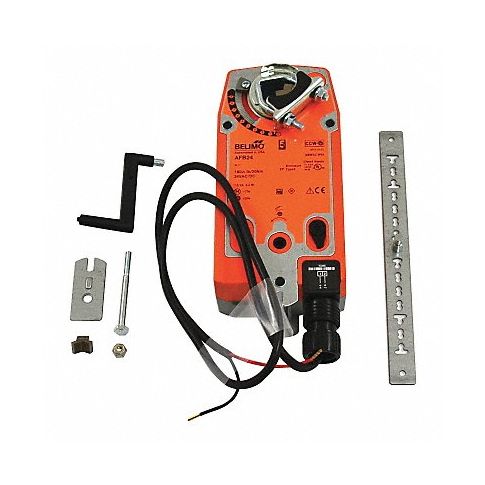

Spring Return Damper Actuator 24VAC/DC MPN:AFB24
Introducing Belimo's Spring Return Damper Actuator - the ultimate solution for reliable, fail-safe damper control in HVAC and refrigeration systems. This actuator boasts true spring return operation, ensuring that dampers close off securely even when power is lost. Its consistent torque provides accurate positioning, while up to 95 of rotation and a graduated position indicator make for precise adjustments. The factory setting at +5 guarantees automatic compression against damper gaskets, ensuring a tight shut-off. The actuator's enclosure rating makes it suitable for harsh environments, and its numerous applications range from laboratories to commercial buildings and industrial facilities. Improve your control systems with Belimo's Spring Return Damper Actuator - the perfect combination of durability, reliability, and precision.
Top product features:
- True spring return operation for fail-safe application
- Up to 95 of rotation for precise adjustments
- Factory setting at +5 for automatic compression against damper gaskets
Top product applications:
- HVAC systems for on/off damper control in commercial and industrial buildings
- Air handling units for temperature and pressure control
- Refrigeration systems to regulate airflow and maintain consistent temperatures
Technical Specifications
- Item Spring Return Damper Actuator, 24VAC/DC
- Spring Return Yes
- Shaft Type 1/2 in to 1-3/64 in Round
- Torque 180 in-lb
- Stroke Deg. 0 to 95
- Height 9 11/16 in
- Width 3 5/32 in
- Depth 3 27/64 in
- Signal Type On/Off
- Motor Direction CW or CCW
- Ambient Temp. Range -22 Degrees to 122 Degrees F
- Timing 75 sec
- Voltage 24V AC/DC
- Power Rating 5W
- Includes Mounting Hardware
Manufacturer Details
- Manufacturer: Belimo
- Condensed Mfg Number: AFB24
- MPN: AFB24
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8501104040
- GDS Category Name: Electric Actuators
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 31251501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Actuators
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Electric actuators
- UNSPSC Family ID: 25
- UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
