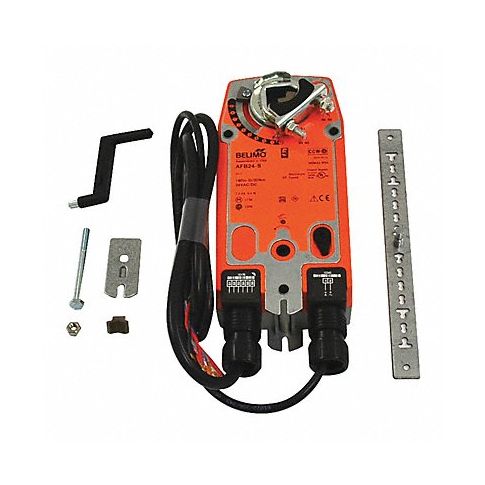

Spring Return Damper Actuator 24VAC/DC MPN:AFB24-S

Ideal for the on/off, fail-safe damper control in HVAC systems, this BELIMO spring return damper actuator (24VAC/DC) can provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides a consistent torque to the damper with, and without, power applied to the actuator. Unit provides up to 95° of rotation and has a graduated position indicator displaying 0° to 95°. The actuator may be stalled anywhere in its normal rotation without the need for mechanical end switches. This model comes with 2 built-in auxiliary SPDT switches for safety interfacing or signaling (for example, for fan start-up). The switching function at the fail-safe position is fixed at +10°, the other switch function is adjustable between +10° to +90°. Actuator is factory set at +5° (5° from full fail-safe) to provide automatic compression against damper gaskets for a tight shut-off.

Technical Specifications

• Item Spring Return Damper Actuator, 24VAC/DC
• Spring Return Yes
• Shaft Type 1/2 in to 1-3/64 in Round
• Torque 180 in-lb
• Stroke Deg. 0 to 95
• Height 9 11/16 in
• Width 3 5/32 in
• Depth 3 27/64 in
• Switch Type 2 SPDT
• Signal Type On/Off
• Motor Direction CW or CCW
• Ambient Temp. Range -22 Degrees to 122 Degrees F
• Timing 75 sec
• Voltage 24V AC/DC
• Power Rating 5W
• Includes Mounting Hardware
