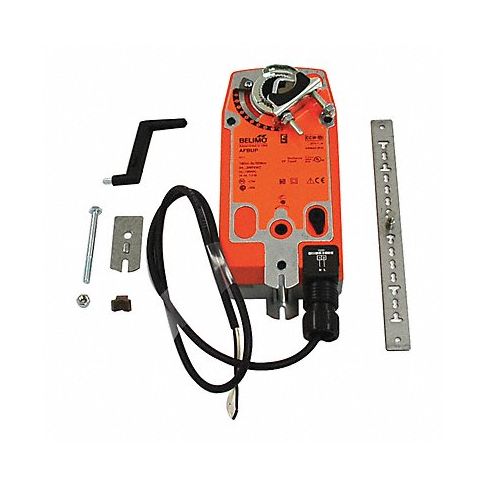

Spring Return Damper Actuator 24VAC/DC MPN:AFBUP

Designed for on/off, fail-safe damper control in HVAC systems, this BELIMO spring return damper actuator (24VAC/DC) can provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides a consistent torque to the damper with, and without, power applied to the actuator. Unit provides up to 95° of rotation and has a graduated position indicator displaying 0° to 95°. The actuator may be stalled anywhere in its normal rotation without the need for mechanical end switches. Actuator is factory set at +5° (5° from full fail-safe) to provide automatic compression against damper gaskets for a tight shut-off.

Technical Specifications

• Item Spring Return Damper Actuator, 24VAC/DC
• Spring Return Yes
• Shaft Type 1/2 in to 1-3/64 in Round
• Torque 180 in-lb
• Stroke Deg. 0 to 95
• Height 9 11/16 in
• Width 3 5/32 in
• Depth 3 27/64 in
• Signal Type On/Off
• Motor Direction CW or CCW
• Ambient Temp. Range -22 Degrees to 122 Degrees F
• Timing 75 sec
• Voltage 24-240V AC
• Power Rating 7W
• Includes Mounting Hardware

Manufacturer Details

• Manufacturer: Belimo
• Condensed Mfg Number: AFBUP
• MPN: AFBUP

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8501104040
• GDS Category Name: Electric Actuators
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 31251501
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Actuators
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Electric actuators
• UNSPSC Family ID: 25
• UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
