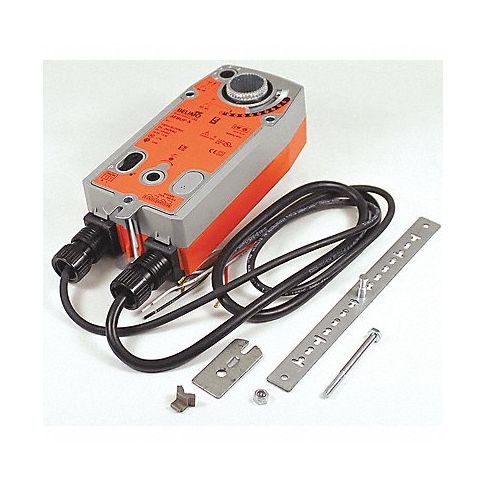

Sprng Rtrn Dmpr Actuator 24VAC to 240VAC MPN:AFBUP-S

Designed for on/off, fail safe damper control in HVAC systems, this BELIMO spring return damper actuator, 24VAC to 240VAC can be mounted directly to a damper shaft up to 1.05” dia. using its universal clamp. Model provides true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system also provides constant torque to the damper with, and without, power applied to the actuator unit. The actuator can provide up to 95° of rotation and is provided with a graduated position indicator showing 0° to 95°. Model may be stalled anywhere in its normal rotation without the need for mechanical end switches.

Technical Specifications

• Item Spring Return Damper Actuator, 24VAC to 240VAC
• Spring Return Yes
• Shaft Type 1/2 in to 1-3/64 in Round
• Torque 180 in-lb
• Stroke Deg. 0 to 95
• Height 9 11/16 in
• Width 3 5/32 in
• Depth 3 27/64 in
• Switch Type 2 SPDT
• Signal Type On/Off
• Motor Direction CW or CCW
• Ambient Temp. Range -22 Degrees to 122 Degrees F
• Timing 75 sec
• Voltage 24-240V AC
• Power Rating 7W
• Includes Mounting Hardware

Manufacturer Details

• Manufacturer: Belimo
• Condensed Mfg Number: AFBUPS
• MPN: AFBUP-S

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8501104040
• GDS Category Name: Electric Actuators
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 31251501
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Actuators
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Electric actuators
• UNSPSC Family ID: 25
• UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
