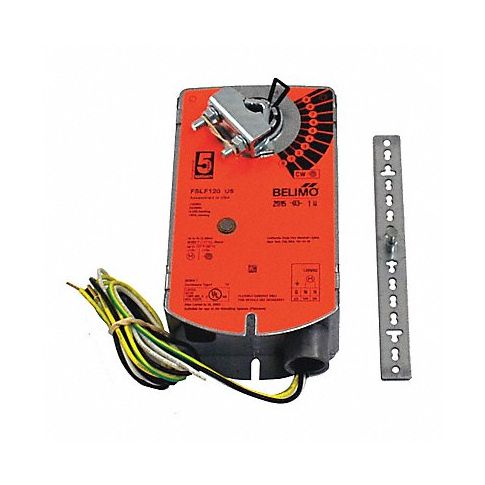

Fire and Smoke Damper Actuator 120VAC MPN:FSLF120
Fire and Smoke Damper Actuator 120VAC
Belimo's Fire and Smoke Damper Actuator is an essential accessory for any ventilation or air conditioning system looking to improve fire safety compliance. With its direct mount design and sturdy cold-weld clamp connection, this actuator provides reliable operation for smoke and combination fire and smoke dampers. Its 120VAC motor enables efficient opening and closing within a 15-second timeframe, making it ideal for applications that require quick response times. With its robust construction and state-of-the-art technology, the Belimo Fire and Smoke Damper Actuator is perfect for commercial and industrial buildings, hospitals, educational institutions, and any facility looking to ensure occupant safety in the event of a fire emergency.
Top product features:
- Direct mount design for easy installation
- Cold-weld clamp connection for sturdy mounting on damper shafts
- Meets UBC standards for fire safety
Top product applications:
- Fire protection in commercial buildings
- Safety systems in hospitals and schools
- Smoke evacuation in shopping centers
This BELIMO fire and smoke damper actuator, 120VAC is designed for operating smoke and combination fire and smoke dampers in ventilation and air conditioning systems. Model meets requirements of UL 555 and UL 555S when tested as an assembly with the damper, and will meet requirements of UBC for 15 sec. opening and closing. Actuator is mounted to the damper axle shaft or jack shaft is by a cold-weld clamp. Teeth in the clamp and V-bolt allow a sturdy connection to both hollow and solid shafts without crushing hollow shafts.
Technical Specifications
- Item Fire and Smoke Damper Actuator, 120VAC
- Mounting Type Direct Mount
- Spring Return Yes
- Shaft Type 3/8 in to 1/2 in Round
- Torque 30 in-lb
- Stroke Deg. 0 to 95
- Height 7 1/32 in
- Width 3 55/64 in
- Depth 2 15/64 in
- Signal Type On/Off
- Motor Direction CW or CCW
- Ambient Temp. Range 32 Degrees to 122 Degrees F
- Timing 15 sec
- Voltage 120V AC
- Includes Mounting Hardware
Manufacturer Details
- Manufacturer: Belimo
- Condensed Mfg Number: FSLF120
- MPN: FSLF120
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8501104040
- GDS Category Name: Electric Actuators
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 31251501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Actuators
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Electric actuators
- UNSPSC Family ID: 25
- UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:16pm UTC
Category: HVAC Controls and Thermostats
