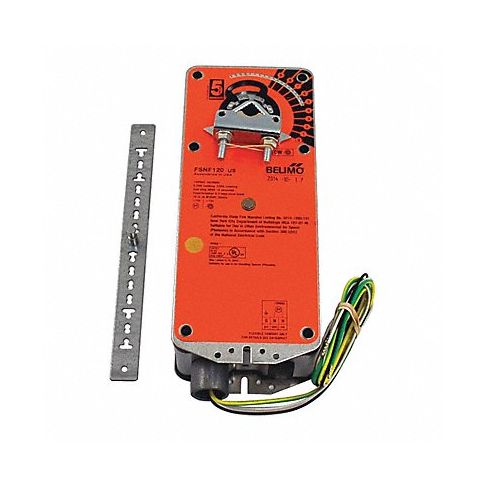

Fire and Smoke Damper Actuator 120VAC MPN:FSNF120

This BELIMO fire and smoke damper actuator, 120VAC is designed for operating smoke and combination fire and smoke dampers in ventilation and air conditioning systems. Model meets requirements of UL 555 and UL 555S when tested as an assembly with the damper, and will meet requirements of UBC for 15 sec. opening and closing at 350°F. Actuator is mounted to the damper axle shaft or jack shaft (3/8” to 1.05”) by a cold-weld clamp. Teeth in the clamp and V-bolt allow a sturdy connection to both hollow and solid shafts without crushing hollow shafts.

Technical Specifications

• Item Fire and Smoke Damper Actuator, 120VAC
• Mounting Type Direct Mount
• Spring Return Yes
• Shaft Type 3/8 in to 1-3/64 in Round
• Torque 70 in-lb
• Stroke Deg. 0 to 95
• Height 10 13/64 in
• Width 3 55/64 in
• Depth 3 1/4 in
• Signal Type On/Off
• Motor Direction CW or CCW
• Ambient Temp. Range 32 Degrees to 122 Degrees F
• Timing 15 sec
• Voltage 120V AC
• Includes Mounting Hardware

Manufacturer Details

• Manufacturer: Belimo
• Condensed Mfg Number: FSNF120
• MPN: FSNF120

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8501104040
• GDS Category Name: Electric Actuators
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 31251501
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Actuators
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Electric actuators
• UNSPSC Family ID: 25
• UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
