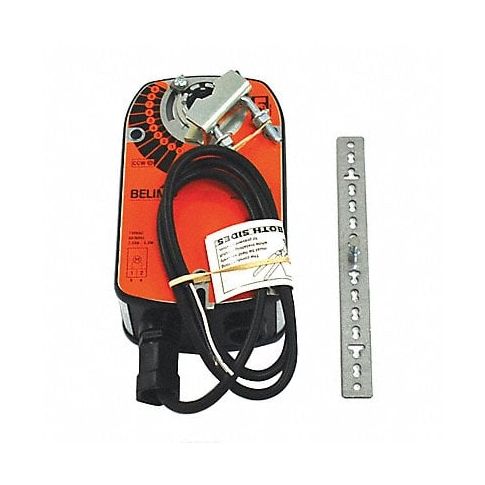

Spring Return Damper Actuator 120VAC MPN:LF120
Spring Return Damper Actuator 120VAC
Belimo's Spring Return Damper Actuator 120VAC is a reliable damper control solution for HVAC systems requiring consistent, fail-safe operation with positive close off on air tight dampers. The double insulated actuator provides up to 95 of rotation and consistent torque with or without power applied, ensuring efficient, stall-resistant operation. With a graduated position indicator and no need for mechanical end switches, this model simplifies installation and operation for easy, reliable performance across a wide range of applications in HVAC and refrigeration systems.
Top product features:
- Spring return operation for reliable fail-safe application and positive close off on air tight dampers
- Consistent torque to the damper with or without power applied
- Up to 95 of rotation with a graduated position indicator displaying 0 to 95
Top product applications:
- HVAC and Refrigeration systems that require consistent, reliable damper control
- Air flow control in commercial and industrial settings
- Zone control for temperature and air flow regulation in large buildings
Ideal for the on/off, fail-safe damper control in HVAC systems, this BELIMO spring return damper actuator (120VAC) can provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides a consistent torque to the damper with, and without, power applied to the actuator. Unit provides up to 95° of rotation and has a graduated position indicator displaying 0° to 95°. The actuator may be stalled anywhere in its normal rotation without the need for mechanical end switches. Model is double insulated so an electrical ground connection is not required.
Technical Specifications
- Item Spring Return Damper Actuator, 120VAC
- Mounting Type Direct Mount
- Spring Return Yes
- Shaft Type 3/8 in to 1/2 in Round or 3/8 in to 7/16 in Square
- Torque 35 in-lb
- Stroke Deg. 0 to 95
- Height 7 43/64 in
- Width 3 55/64 in
- Depth 3 15/64 in
- Signal Type On/Off
- Motor Direction CW or CCW
- Ambient Temp. Range -22 Degrees to 122 Degrees F
- Timing 75 sec
- Voltage 120V AC
- Power Rating 5.5W
- Includes Anti-rotation Bracket
Manufacturer Details
- Manufacturer: Belimo
- Condensed Mfg Number: LF120
- MPN: LF120
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8501104040
- GDS Category Name: Electric Actuators
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 31251501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Actuators
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Electric actuators
- UNSPSC Family ID: 25
- UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
