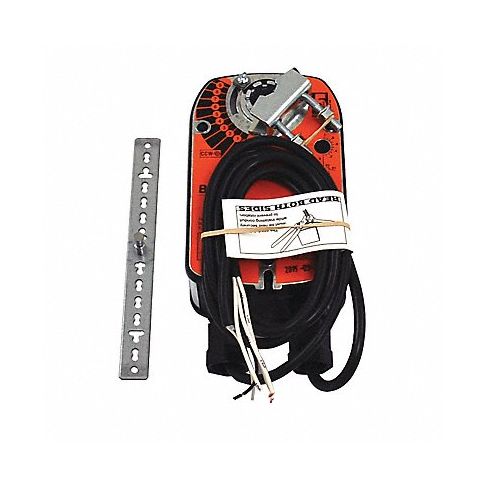

Spring Return Damper Actuator 120VAC MPN:LF120-S
The Belimo Spring Return Damper Actuator (120VAC) is ideal for HVAC systems requiring reliable on/off fail-safe damper control with true spring return operation for positive close off on air tight dampers. This actuator provides consistent torque to the damper with and without power applied, ensuring failure-proof performance. With up to 95 of rotation and a graduated position indicator, this device offers precise control in a wide range of applications, including heating, ventilation, and air conditioning systems. The double insulated design eliminates the need for an electrical ground connection, simplifying installation and ensuring safety. Moreover, it comes with a built-in SPDT switch for safety interfacing or signaling and is adjustable between 0 and 95, providing flexibility and ease of use. The Belimo Spring Return Damper Actuator (120VAC) is an essential tool for maintaining optimum airflow in commercial and industrial facilities.
Top product features:
- True spring return operation for reliable fail-safe application
- Positive close off on air tight dampers
- Consistent torque to the damper with and without power applied
Top product applications:
- Heating and ventilation systems in commercial buildings
- Air conditioning units in office spaces and residential homes
- Cooling and humidifying systems in industrial facilities
Technical Specifications
- Item Spring Return Damper Actuator, 120VAC
- Mounting Type Direct Mount
- Spring Return Yes
- Shaft Type 3/8 in to 1/2 in Round or 3/8 in to 7/16 in Square
- Torque 35 in-lb
- Stroke Deg. 0 to 95
- Height 7 43/64 in
- Width 3 55/64 in
- Depth 3 15/64 in
- Switch Type SPDT
- Signal Type On/Off
- Motor Direction CW or CCW
- Ambient Temp. Range -22 Degrees to 122 Degrees F
- Timing 75 sec
- Voltage 120V AC
- Power Rating 5.5W
- Includes Mounting Hardware
Manufacturer Details
- Manufacturer: Belimo
- Condensed Mfg Number: LF120S
- MPN: LF120-S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809020
- GDS Category Name: Electric Actuators
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 31251501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Actuators
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Electric actuators
- UNSPSC Family ID: 25
- UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
