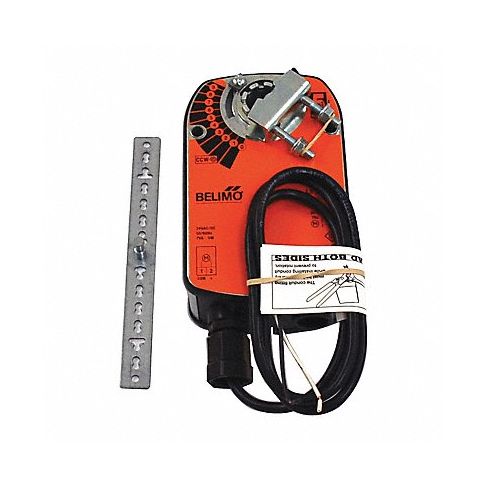

Spring Return Damper Actuator 24VAC/DC MPN:LF24
Introducing the Spring Return Damper Actuator from Belimo - perfect for on/off fail-safe control in HVAC systems! This innovative actuator is designed to mount directly to damper shafts from 3/8 up to 1/2 dia, providing consistent torque and reliable close off on air tight dampers. The spring return system ensures positive positioning with and without power applied, while the 95 rotation provides accurate control of your damper systems. Double-insulated for safety and easy installation, this actuator requires no ground connection and can stall anywhere in its rotation without needing mechanical end switches. Use the Spring Return Damper Actuator to enjoy consistent performance, energy savings, and improved system reliability in your HVAC or refrigeration applications!
Top product features:
- Direct Mounting Eliminates additional parts and tools for mounting, saving time and effort during installation.
- Spring Return System Provides consistent torque to dampers even without power applied for reliable fail-safe applications.
- 95 Rotation Range Allows for precise control of damper positions, ensuring optimal performance in HVAC or refrigeration systems.
Top product applications:
- HVAC Systems Control airflow in heating and cooling systems for efficient temperature regulation.
- Refrigeration Adjust refrigerant flow for precise temperature control in walk-in freezers or coolers.
- Ventilation Regulate damper positions in industrial buildings, hospitals or commercial spaces to ensure proper air circulation and filtration.
Technical Specifications
- Item Spring Return Damper Actuator, 24VAC/DC
- Mounting Type Direct Mount
- Spring Return Yes
- Shaft Type 3/8 in to 1/2 in Round or 3/8 in to 7/16 in Square
- Torque 35 in-lb
- Stroke Deg. 0 to 95
- Height 7 43/64 in
- Width 3 55/64 in
- Depth 3 15/64 in
- Signal Type On/Off
- Motor Direction CW or CCW
- Ambient Temp. Range -22 Degrees to 122 Degrees F
- Timing 75 sec
- Voltage 24V AC/DC
- Power Rating 5W
- Includes Mounting Hardware
Manufacturer Details
- Manufacturer: Belimo
- Condensed Mfg Number: LF24
- MPN: LF24
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8501104040
- GDS Category Name: Electric Actuators
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 31251501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Actuators
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Electric actuators
- UNSPSC Family ID: 25
- UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
