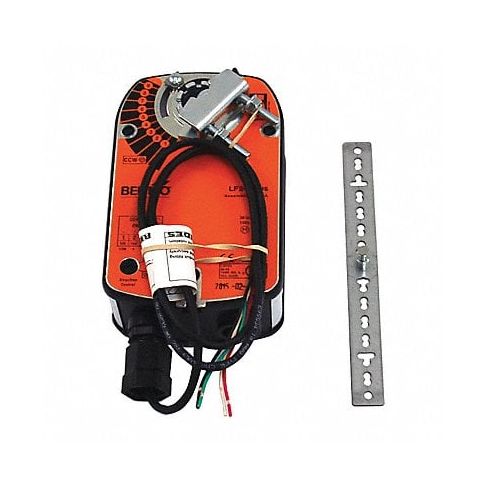

Spring Return Damper Actuator 24VAC/DC MPN:LF24-3

Designed for modulation or on/off, fail-safe damper control in HVAC systems, this BELIMO spring return damper actuator (24VAC/DC) provides true spring return operation for reliable fail-safe application and positive close-off on air tight dampers. The spring return system can provide consistent torque to the damper with, and without, power applied to the actuator. Model can provide up to 95° of rotation and is provided with a graduated position indicator displaying 0° to 95°. Model uses a brushless DC motor controlled by an Application Specific Integrated Circuit (ASIC) and a microprocessor. The microprocessor provides data to the ASIC in order to provide a constant rotation rate and to determine the actuator’s exact fail-safe position. The ASIC controls and monitors the DC motor’s rotation and provides a digital rotation sensing function to prevent damage to the actuator in a stall condition

Technical Specifications

• Item Spring Return Damper Actuator, 24VAC/DC
• Mounting Type Direct Mount
• Spring Return Yes
• Shaft Type 3/8 in to 1/2 in Round or 3/8 in to 7/16 in Square
• Torque 35 in-lb
• Stroke Deg. 0 to 95
• Height 7 43/64 in
• Width 3 55/64 in
• Depth 3 15/64 in
• Signal Type Floating, On/Off
• Motor Direction CW or CCW
• Ambient Temp. Range -22 Degrees to 122 Degrees F
• Timing 150 sec
• Voltage 24V AC/DC
• Power Rating 2.5W
• Includes Mounting Hardware
