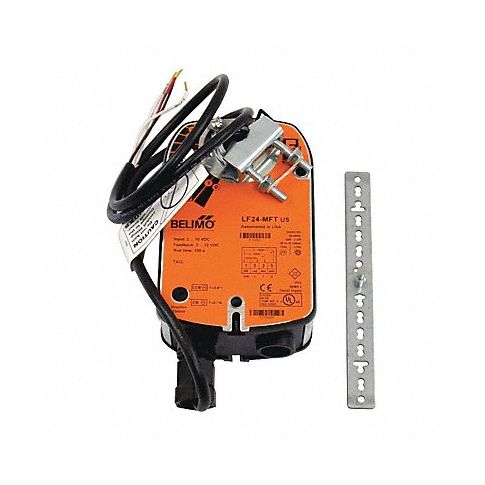

Spring Return Damper Actuator 24VAC/DC MPN:LF24-MFT

Designed for the fail-safe modulating control of dampers in HVAC systems, this BELIMO spring return damper actuator (24VAC/DC) provides 95° rotation and has a graduated position indicator that displays 0° to 95°. Model will synchronize the 0° mechanical stop or the damper or valves mechanical stop and use this point for its zero position during normal control operations. Actuator has a brushless DC motor controlled by an Application Specific Integrated Circuit (ASIC) and a microprocessor. The ASIC monitors and controls the DC motor’s rotation and provides a Digital Rotation Sensing (DRS) function to help prevent damage to the actuator in a stall condition. The actuator can be stalled anywhere in its normal rotation without the need for mechanical end switches. Unit mounts directly to the control shaft.

Technical Specifications

• Item Spring Return Damper Actuator, 24VAC/DC
• Mounting Type Direct Mount
• Spring Return Yes
• Shaft Type 3/8 in to 1/2 in Round or 3/8 in to 7/16 in Square
• Torque 35 in-lb
• Stroke Deg. 0 to 95
• Height 7 43/64 in
• Width 3 55/64 in
• Depth 3 15/64 in
• Signal Type MFT
• Motor Direction CW or CCW
• Ambient Temp. Range -22 Degrees to 122 Degrees F
• Timing 150 sec
• Voltage 24V AC/DC
• Power Rating 2.5W
• Includes Mounting Hardware
