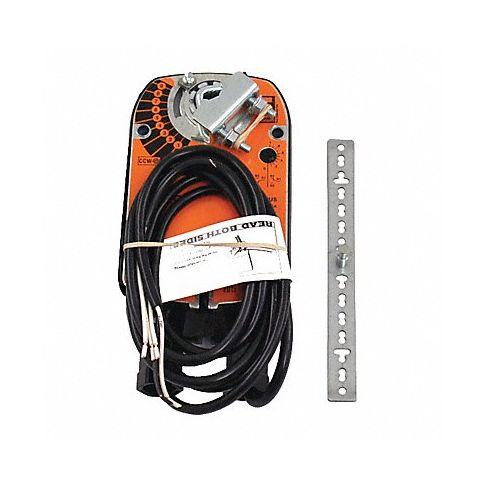

Spring Return Damper Actuator 24VAC/DC MPN:LF24-S
Introducing the Spring Return Damper Actuator from Belimo - the perfect solution for fail-safe control in HVAC systems. This reliable actuator mounts directly to damper shafts with a universal clamp, ensuring easy installation and maintenance. With its true spring return operation, this unit provides consistent torque regardless of whether power is applied, resulting in smooth and stable positioning. The 95 rotation ensures optimal control, while the graduated position indicator allows for precise adjustments. Additionally, the actuator's built-in SPDT auxiliary switch allows for safety interfacing or signaling, making it a versatile option for various applications. The double insulation means no electrical ground connection is needed, simplifying installation even further. The Spring Return Damper Actuator from Belimo delivers efficient and reliable operation for any HVAC system.
Top product features:
- Spring return operation for fail-safe applications
- Direct mounting on damper shafts with universal clamp
- Consistent torque with or without power applied to the actuator
Top product applications:
- HVAC systems in commercial buildings for on/off damper control
- Air ducts in residential properties for temperature regulation
- Industrial facilities for ventilation and air conditioning control
Technical Specifications
- Item Spring Return Damper Actuator, 24VAC/DC
- Mounting Type Direct Mount
- Spring Return Yes
- Shaft Type 3/8 in to 1/2 in Round or 3/8 in to 7/16 in Square
- Torque 35 in-lb
- Stroke Deg. 0 to 95
- Height 7 43/64 in
- Width 3 55/64 in
- Depth 3 15/64 in
- Switch Type SPDT
- Signal Type On/Off
- Motor Direction CW or CCW
- Ambient Temp. Range -22 Degrees to 122 Degrees F
- Timing 75 sec
- Voltage 24V AC/DC
- Power Rating 5W
- Includes Mounting Hardware
Manufacturer Details
- Manufacturer: Belimo
- Condensed Mfg Number: LF24S
- MPN: LF24-S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809020
- GDS Category Name: Electric Actuators
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 31251501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Actuators
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Electric actuators
- UNSPSC Family ID: 25
- UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
