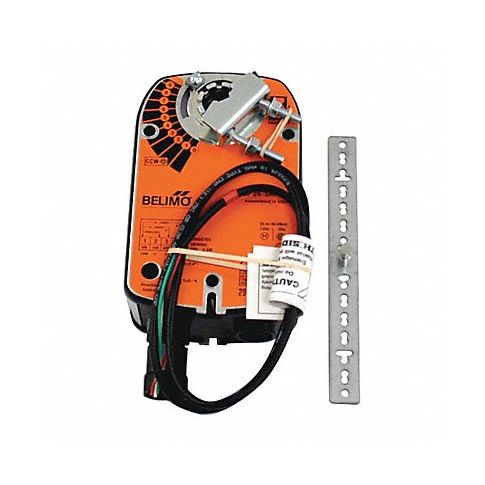

Spring Return Damper Actuator 24VAC/DC MPN:LF24-SR
Introducing the Spring Return Damper Actuator 24VAC/DC from Belimo - designed for fail safe, modulating damper control in HVAC systems. This innovative actuator provides true spring return operation for reliable fail-safe application and positive close-off on air tight dampers. With up to 95 of rotation and a graduated position indicator displaying 0 to 95, this model offers consistent torque to the damper with or without power applied to the actuator. Its brushless DC motor controlled by an Application Specific Integrated Circuit (ASIC) and microprocessor ensures efficient operation, while the microprocessor device provides data to the ASIC for accurate positioning. The actuator's fail-safe position is determined by a microprocessor, which monitors the rotation rate of the DC motor. This powerful HVAC solution is suitable for a wide range of applications in the heating, ventilation, and air conditioning (HVAC) industry, making it an essential tool for maintaining optimal indoor environments.
Top product features:
- True Spring Return Operation Ensures consistent torque to the damper with and without power applied to the actuator for reliable fail-safe application.
- Up to 95 Rotation Provides precise control over damper positions for optimal performance in HVAC systems.
- Graduated Position Indicator Allows easy monitoring of damper position for accurate positioning and improved diagnostics.
Top product applications:
- HVAC Systems Designed for fail safe, modulating damper control in heating, ventilation and air conditioning (HVAC) systems, providing precise control over damper positions and reliable fail-safe applications.
- Air Tight Dampers Positive close-off on air tight dampers ensures a seal that prevents unwanted air leakage, saving energy and maintaining optimal indoor environment conditions.
- Commercial Spaces Used in commercial spaces such as office buildings, schools, hospitals, or hotels to maintain consistent temperature and humidity levels for occupant comfort and safety.
Technical Specifications
- Item Spring Return Damper Actuator, 24VAC/DC
- Mounting Type Direct Mount
- Spring Return Yes
- Shaft Type 3/8 in to 1/2 in Round or 3/8 in to 7/16 in Square
- Torque 35 in-lb
- Stroke Deg. 0 to 95
- Height 7 43/64 in
- Width 3 55/64 in
- Depth 3 15/64 in
- Signal Type Proportional
- Motor Direction CW or CCW
- Ambient Temp. Range -22 Degrees to 122 Degrees F
- Timing 150 sec
- Voltage 24V AC/DC
- Power Rating 2.5W
- Includes Mounting Hardware
Manufacturer Details
- Manufacturer: Belimo
- Condensed Mfg Number: LF24SR
- MPN: LF24-SR
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809020
- GDS Category Name: Electric Actuators
- GDS Family Name: HVAC Controls and Thermostats
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 31251501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Actuators
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Electric actuators
- UNSPSC Family ID: 25
- UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
