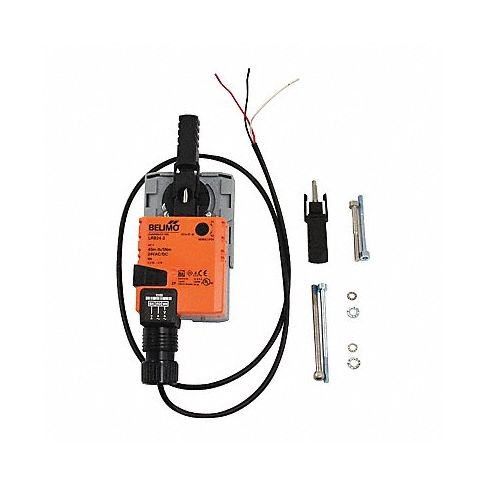

Non-Spring Return Damper Actuator MPN:LRB24-3

Designed for on/off and floating point control of dampers in HVAC systems, this BELIMO non-spring return damper actuator has a reversible motor with a built-in switch. Model is maintenance free and does not require any limit switches, but is electronically protected against overload.

• Overload protection: electronic throughout 0° to 90° rotation
• Housing: NEMA 2, IP54, UL Enclosure Type 2

Technical Specifications

• Item Non-Spring Return Damper Actuator
• Spring Return No
• Torque 45 in-lb
• Stroke Deg. 0 to 95
• Height 9 13/32 in
• Width 2 19/32 in
• Depth 2 11/32 in
• Signal Type Floating, On/Off
• Motor Direction CW or CCW
• Ambient Temp. Range -22 Degrees to 122 Degrees F
• Timing 90 sec
• Voltage 24V AC/DC
• Power Rating 1.5W
• Includes Mounting Hardware

Manufacturer Details

• Manufacturer: Belimo
• Condensed Mfg Number: LRB243
• MPN: LRB24-3

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8501104040
• GDS Category Name: Electric Actuators
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 31251501
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Actuators
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Electric actuators
• UNSPSC Family ID: 25
• UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
