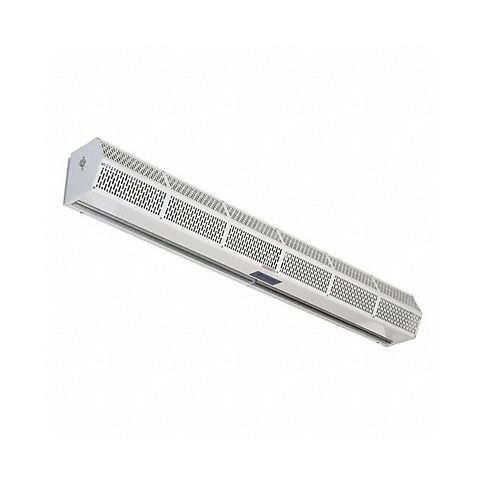

Low Profile Air Curtain 42-7/8 in W MPN:SLC07-1042AC-G

Air Curtains

• Units include all necessary controls
Stabilize environments and save energy by minimizing the loss of heat or air-conditioned air through open doorways, and effectively repel flying insects, dust, and pollutants. The curtains also eliminate the need for plastic-strip doors over walk-in coolers or food processing areas.
Low-Profile

• Hardwired Plunger door switch included Wall- or top-mount Unheated
Compact design for front and back entry doors. Units provide energy savings, comfort, and insect control.
UL and C-UL Listed for indoor/outdoor use and UL-EPH Listed to NSF Standard 37.

Technical Specifications

• Item Low Profile Air Curtain
• Air Curtain Max. Door Width 3.5 ft
• Max. Mounting Height 7 ft
• Air Curtain Air Volume 1188 cfm
• Air Curtain dBA @ 10 Feet 54
• Width 42 7/8 in
• Height 8 1/2 in
• Depth 8 in
• Number of Motors 1
• Phase 1
• Voltage 115/208-240
• Max. Amps 3.4/1.7 to 1.7
• Air Curtain Item Low Profile Air Curtain
• Air Curtain Heated No
• Air Curtain Air Velocity 3300 fpm
• Air Curtain Finish Powder Coated
• Air Curtain Housing Material Steel
• Hz 60
• Housing Color White
• Motor Type Permanent Split Capacitor
• Motor Enclosure Totally Enclosed
• Motor HP 1/5 hp
• Max. RPM 1,680 RPM
• Number of Speeds 1
• Requires Hard Wiring
• Standards EPH ANSI/NSF 37, NSF 37, UL Indoor, UL Outdoor and CUL Indoor
• Includes Door Limit Switch, Plunger Style for Automatic Operation

Manufacturer Details

• Manufacturer: Berner
• Condensed Mfg Number: SLC071042ACG
• MPN: SLC07-1042AC-G

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414599080
• GDS Category Name: Air Curtains
• GDS Family Name: Ventilation Equipment and Supplies
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 27131605
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air fittings and connectors
• UNSPSC Commodity ID: 05
• UNSPSC Commodity Name: Air curtain
• UNSPSC Family ID: 13
• UNSPSC Family Name: Pneumatic machinery and equipment
• UNSPSC Segment ID: 27
• UNSPSC Segment Name: Tools and General Machinery

Shipping Details

• Not For Sale In: HI AK PR
