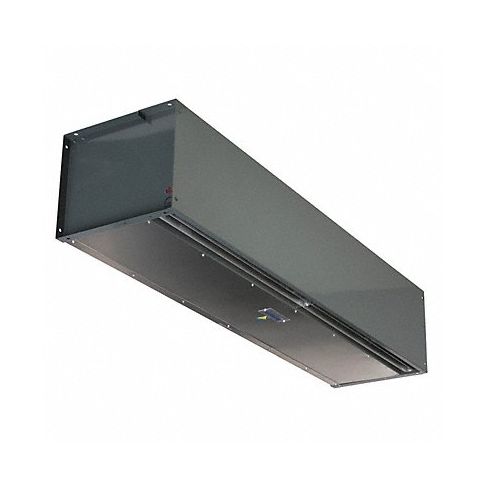

High Velocity Air Curtain 4972 cfm MPN:IDC14-2084AA-G

Air Curtains

• Units include all necessary controls
Stabilize environments and save energy by minimizing the loss of heat or air-conditioned air through open doorways, and effectively repel flying insects, dust, and pollutants. The curtains also eliminate the need for plastic-strip doors over walk-in coolers or food processing areas.
Multipurpose, High-Velocity

• Hardwired Plunger door switch included Control panel included Wall- or top-mount Unheated
Use on shipping/receiving and loading dock doors. Factory-installed control panel on left end of cabinet; NEMA 4/12 industrial enclosure, motor contactor, 120V transformer (as required), fusing (as required), and terminal strip. Units block wind and provide energy savings, comfort, and insect control.
UL and C-UL Listed for indoor/outdoor use.

Technical Specifications

• Item High Velocity Air Curtain
• Air Curtain Max. Door Width 7 ft
• Max. Mounting Height 14 ft
• Air Curtain Air Volume 4972 cfm
• Air Curtain dBA @ 10 Feet 65
• Width 87 in
• Depth 18 in
• Number of Motors 2
• Phase 1
• Voltage 115
• Max. Amps 25.2
• Air Curtain Item High Velocity Air Curtain
• Air Curtain Heated No
• Air Curtain Air Velocity 5000 fpm
• Air Curtain Finish Powder Coated
• Air Curtain Housing Material Steel
• Hz 60
• Housing Color Gray
• Motor Type Permanent Split Capacitor
• Motor Enclosure Open Dripproof
• Motor HP 1 hp
• Max. RPM 1,680 RPM
• Number of Speeds 1
• Requires Hard Wiring
• Standards AMCA, UL Indoor, UL Outdoor and CUL Indoor
• Includes Factory Mounted Control Panel with 120V Control Voltage and Door Limit Switch, Plunger Style for Automatic Operation
