Uncover the Hidden Secrets of Industrial Fuses: A Comprehensive Buyer’s Guide
February 13, 2025
Overview:
In industrial settings, safe and reliable electrical protection is critical for the longevity of equipment, the safety of workers, and the overall success of operations. Fuses play a vital role in preventing electrical faults and overcurrent incidents that can lead to catastrophic breakdowns, production downtime, and even serious hazards for personnel. Whether it’s truck fuses for commercial vehicles, ceramic vs glass fuse replacements in manufacturing machinery, or specialty fuses like Class J or Class CC for high-powered industrial applications, it’s important to understand which fuse is right for each scenario. Proper fuse selection saves money, time, and headaches—especially when a single blown fuse can stall an entire production line. In this blog post, we’ll walk through various types of fuses, discuss key SEO-friendly fuse-related topics (e.g., “how to check a fuse with a multimeter,” “my fuse says .5 amp what voltage can it handle,” “30 amp time delay fuse glass,” and more), and help you make informed buying decisions. Read on to become a fuse expert, ensure reliability, and keep your operations running smoothly.
Table of Contents
- Forklift & Truck Fuses
- American Glass and Ceramic Fuses
- British and IEC Fuses
- Capacitor Fuses
- Class CC Fuses
- Class D - Milk Bottle - Fuses
- Class G Fuses
- Class J and CF Fuses
- Class K5 and H Fuses
- Class L Fuses
- Class RK1 Fuses
- Class RK5 Fuses
- Class T Fuses
- Forklift Limiter Fuses
- Medium Voltage Fuses
- Midget Fuses
- Multimeter Fuses
- Plug Fuses
- Solar Fuses
- Telecom Protection Fuses
- Automotive Blade Fuses
- Automotive Cartridge Fuses
- Automotive Glass Fuses
- Automotive High Current Bolt on Fuses
- Primary Locations & Possible Alternatives
- Final Thoughts

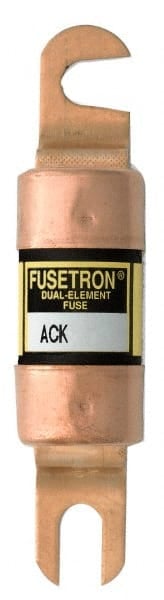

1. Forklift & Truck Fuses
Overview
Forklift and truck fuses are designed to handle the unique overcurrent protection needs of heavy vehicles used in industrial and commercial settings. Because truck fuses must support high amperages and endure harsh conditions, manufacturers ensure robust construction and reliable performance. These fuses prevent electrical overloads in essential circuits such as lighting, engine control modules, and hydraulic systems. In day-to-day operations, a single fuse truck blow can halt productivity, so selecting a sturdy and suitably rated fuse is crucial. This ensures minimal downtime and extends the service life of equipment.
Top 5 Applications
- Heavy-duty forklifts in warehouses
- Commercial trucks transporting cargo
- Airport baggage tractors
- Construction site loaders and trucks
- Municipal fleet vehicles (e.g., garbage trucks)
Top 5 Reasons to Use Forklift & Truck Fuses
- Prevents sudden breakdowns in critical commercial vehicles
- Handles high-current demands safely
- Reduces costly equipment downtime
- Offers superior vibration resistance
- Ensures compliance with industrial safety regulations
Top 10 FAQs and Answers
- Q: Can I use regular automotive blade fuses for forklifts?
A: It’s best to use forklift and truck fuses specifically rated for heavy-duty applications due to higher current demands and harsher conditions. - Q: What amperage ratings are common in forklift fuses?
A: They often range from 40A to 200A or higher, depending on the vehicle’s power needs. - Q: How do I handle a blown fuse in a truck?
A: Always replace it with the same rating and type specified by the manufacturer. If it blows immediately again, inspect for deeper electrical issues. - Q: Are forklift fuses current limiting?
A: Some are designed to be current limiting fuses, reducing fault energy to protect sensitive components. - Q: Do harsh weather conditions impact fuse performance?
A: Yes. High-quality truck fuses are built to withstand temperature extremes, moisture, and vibration. - Q: How often should forklift fuses be inspected?
A: Regularly as part of preventive maintenance, typically every three to six months or as recommended by your service manual. - Q: Can a bad capacitor blow a fuse in my forklift?
A: While forklifts typically rely on motors more than capacitors, a bad capacitor could theoretically blow a fuse if it creates a short circuit in certain electronic controls. - Q: Do I need a fuse voltage drop chart for forklift fuse selection?
A: It can be helpful to ensure correct sizing and to understand voltage drops under load conditions. - Q: Should I stock spares for forklift fuses?
A: Absolutely. Keeping spares on hand reduces downtime if a fuse blows unexpectedly. - Q: Are forklift fuses interchangeable across different brands?
A: They can be if the rating and physical dimensions match, but always check manufacturer recommendations for best results.
Product Recommendations
2. American Glass and Ceramic Fuses
Overview
American glass and ceramic fuses are some of the most common protective devices in North America. Glass fuse vs ceramic fuse comparisons often arise when dealing with small electronics, power supplies, and household appliances. Both types serve to protect circuits from excessive current, but ceramic fuse vs glass fuse differences include higher interrupting ratings for ceramics and better transparency for glass fuses (for visual inspection). Knowing how to tell if a ceramic fuse is blown can be tricky since you can’t always see internal damage, so a multimeter check is often required.
Top 5 Applications
- Household appliances (microwaves, dryers)
- Industrial control panels
- Audio/visual equipment
- HVAC systems
- Medical devices
Top 5 Reasons to Use American Glass and Ceramic Fuses
- Wide range of amperage ratings (e.g., 15 amp ceramic fuse, 20 amp ceramic fuse, 10 amp ceramic fuse)
- Easy to replace and widely available
- Standard sizes accepted by many devices in North America
- Ceramic options handle higher interrupting capacity (helpful for ceramic blown fuse scenarios)
- Glass options offer easy visibility for a quick check
Top 10 FAQs and Answers
- Q: Glass fuse vs ceramic fuse—which is better?
A: It depends on the application. Ceramic fuses often have a higher interrupt rating, while glass fuses are easier to inspect visually. - Q: How to tell if a ceramic fuse is blown if it’s not transparent?
A: Use a multimeter to test continuity. If there’s no continuity, the fuse is blown. - Q: Why do manufacturers use ceramic fuse vs glass fuse in certain devices?
A: Ceramic fuses can handle higher temperatures and fault currents, making them ideal for more demanding circuits. - Q: Can a bad capacitor blow a fuse in household electronics?
A: Yes. A shorted capacitor can cause an overcurrent, leading the fuse to blow. - Q: Do I need different fuse holders for glass vs ceramic fuses?
A: Typically they share standard dimensions, but check the diameter and length to ensure compatibility. - Q: What is a 30 amp time delay fuse glass used for?
A: It’s used for circuits that experience short current surges on startup (e.g., motors). The time-delay feature helps avoid nuisance blowing. - Q: How do I know if a ceramic fuse is blown after a power surge?
A: Again, a multimeter reading is the most reliable method. - Q: Is a fuse’s voltage rating relevant for low-voltage or high-voltage use?
A: Absolutely. Always match or exceed the voltage rating required by the circuit for safe operation. - Q: How do I find a glass fuse holder replacement?
A: Ensure you get a holder with the correct diameter, length, and mounting style for your fuse. - Q: Does ceramic fuse blown always indicate a major short circuit?
A: Not always. It can simply mean the fuse did its job by protecting the device from a moderate overcurrent.
Product Recommendations
3. British and IEC Fuses
Overview
British and IEC fuses conform to European and international standards. These fuses, often marked with ratings like BS1362 or IEC 60127, are used globally in both residential and industrial settings. They come in a variety of sizes and interrupting capacities, making them flexible for different circuit requirements. Many global brands incorporate these fuses for universal compliance and standardized replacement parts.
Top 5 Applications
- European household appliances
- Lab equipment and industrial machinery
- Consumer electronics (CE-marked devices)
- Power supplies for IT systems
- Medical equipment intended for global distribution
Top 5 Reasons to Use British and IEC Fuses
- Conforms to international standards
- Widely recognized in global markets
- Easy sourcing of replacements worldwide
- Suited for both high- and low-voltage applications
- Meets rigorous safety and quality certifications
Top 10 FAQs and Answers
- Q: Are British fuses interchangeable with American glass fuses?
A: Generally no. They have different dimension standards and rating systems. - Q: Do British fuses have time-delay variants?
A: Yes, certain BS1362 fuses incorporate time-delay features. - Q: Is it okay to use IEC fuses in North America?
A: If the device and local regulations allow it, yes. Always check local code compliance. - Q: Do I still need to consider fuse voltage drop chart data?
A: Yes, especially for precise applications where voltage drops can affect performance. - Q: Are these fuses used in automotive applications?
A: Generally not. Automotive fuses have specialized standards (e.g., blade fuses). - Q: What’s the main difference between BS and IEC standards?
A: BS references British Standards, while IEC is international. Sometimes they overlap, but other times they have unique requirements. - Q: Can a bad capacitor blow a fuse in a British-standard device?
A: Yes. The physical fuse standard is irrelevant; any short-circuit event can blow a fuse. - Q: Are British fuses commonly found in consumer electronics?
A: Absolutely, especially those manufactured for European markets. - Q: Should I consider a current limiting fuse for high fault conditions?
A: Yes. If you anticipate severe fault currents, a current-limiting design can mitigate damage. - Q: Do BS fuses come in ceramic or glass variants?
A: Yes, both types exist, but ceramic is more common for higher interrupt ratings.
Product Recommendations
4. Capacitor Fuses
Overview
Capacitor fuses protect capacitor banks and associated circuitry from dangerous overcurrent conditions. Commonly used in power factor correction systems and motor-run applications, these fuses must handle high inrush currents when capacitors charge. Selecting the correct fuse is critical to address the surge characteristics typical of capacitive loads. Failure to do so could lead to a catastrophic event and downtime for your facility.
Top 5 Applications
- Power factor correction in industrial plants
- Large HVAC systems
- Motor control centers
- Renewable energy inverters
- High-frequency power supplies
Top 5 Reasons to Use Capacitor Fuses
- Ensure safety against overvoltage and overcurrent events
- Protect valuable capacitor banks
- Mitigate potential power surges and system damage
- Reduce downtime by isolating faulted capacitors
- Meet industry standards for high inrush applications
Top 10 FAQs and Answers
- Q: Can a bad capacitor blow a fuse specifically designed for capacitors?
A: Yes, a shorted capacitor can cause overcurrent, triggering the fuse to blow. - Q: Do capacitor fuses have a specific time-current characteristic?
A: Many are fast-acting to handle immediate faults, but specifics vary by model. - Q: Can I use standard American glass and ceramic fuses for capacitor protection?
A: It’s not recommended if they aren’t specifically rated for high inrush currents. - Q: Is there a difference between single-phase and three-phase capacitor fuses?
A: Yes, the ratings and designs differ based on system voltage and phases. - Q: Should I account for internal discharge resistors in the fuse selection?
A: Always consider the overall circuit design, including discharge resistors, but the primary concern is inrush and fault current. - Q: Do these fuses help with power quality?
A: Indirectly. They protect the capacitors that maintain power factor, which in turn helps with power quality. - Q: Are capacitor fuses current limiting fuses?
A: Many are. They’re designed to quickly cut off excessive currents, but you should check the specific fuse datasheet. - Q: How do I know what fuse voltage rating to choose?
A: It must exceed the capacitor bank’s operating voltage. Be mindful of surge conditions. - Q: Can I check them with a multimeter?
A: Yes. You can test continuity. If open, the fuse is blown. - Q: Are these fuses standardized globally?
A: Major manufacturers typically meet IEC or UL standards, but always verify local requirements.
Product Recommendations
5. Class CC Fuses
Overview
Class CC fuses are high-performance, space-saving fuses often used in control circuits and sensitive industrial equipment. Known for their current-limiting features, Class CC fuse or cc fuse class designs are recognized for faster response times, better short-circuit protection, and high interrupting ratings. They’re a favorite in panel boards and machine control panels where both reliability and compact size are key.
Top 5 Applications
- Industrial control panels
- Machine tool circuits
- Heating and cooling systems
- Lighting circuits
- Power distribution blocks
Top 5 Reasons to Use Class CC Fuses
- Superior current-limiting protection
- Compact footprint compared to other classes
- High interrupt rating (up to 200kA)
- Compatible with bussmann class cc fuse holder systems
- Reduces let-through energy, protecting sensitive components
Top 10 FAQs and Answers
- Q: Are bussmann class cc fuse and littelfuse class cc fuse interchangeable?
A: Generally yes, if they have the same amp and voltage ratings. - Q: Can a cc fuse class replace a Class G fuse?
A: Not typically. Each class has unique dimensional and performance requirements. - Q: Do I need a special class cc fuse holder?
A: Yes. Class CC fuses require a holder designed for their specific dimensions. - Q: Are they time-delay or fast-acting?
A: You can find both, depending on your application needs. - Q: Why are Class CC fuses considered current limiting fuses?
A: They rapidly open under high fault currents, minimizing energy let-through. - Q: Are these fuses used in automotive applications?
A: Typically no, they’re more for industrial and commercial circuits. - Q: How does a bussmann class cc fuse holder improve safety?
A: It provides a secure mounting and sometimes incorporates finger-safe designs. - Q: Can these fuses be checked with a multimeter?
A: Yes, continuity tests are standard practice. - Q: Are there any special code requirements for Class CC fuses?
A: They comply with UL Class CC standards; always verify local electrical codes. - Q: Do Class CC fuses come in higher amperages?
A: Typically, they range up to 30A, but check product lines for specifics.
Product Recommendations
6. Class D - Milk Bottle - Fuses
Overview
Class D fuses, often referred to as “Milk Bottle” fuses due to their distinctive shape, are typically used in older or specialized industrial settings. They provide reliable overcurrent protection and can handle moderate interrupting capacities. While not as common today, they remain in service for legacy equipment, especially where upgrades to newer fuse classes have not been made.
Top 5 Applications
- Legacy manufacturing equipment
- Backup generators
- Old control panels
- Older building infrastructure
- Agricultural machinery
Top 5 Reasons to Use Class D Fuses
- Maintain compatibility with legacy systems
- Solid protection for moderate fault levels
- Standardized shape for certain panels
- Reliable performance in less demanding setups
- Often cost-effective for older equipment
Top 10 FAQs and Answers
- Q: Why are they called “Milk Bottle” fuses?
A: Their shape resembles a traditional milk bottle. - Q: Are Class D fuses easily available?
A: They’re less common but still stocked by select industrial suppliers. - Q: Can I replace Class D with Class CC or Class J?
A: This typically requires a panel or holder retrofit; consult an electrician. - Q: Are they current limiting fuses?
A: Usually not, though some specialized Class D variants may have limited current-limiting capabilities. - Q: Are these fuses recognized by modern electrical codes?
A: Yes, but new installations rarely use them. They’re mostly for maintaining older systems. - Q: Do they come in high amp ratings?
A: Ranges vary; check manufacturer specs. - Q: Is there a benefit to upgrading from Class D to a newer fuse class?
A: Newer classes often offer better current limiting, smaller sizes, and higher interrupt ratings. - Q: Can I check them with a multimeter?
A: Yes, continuity tests work for any fuse type. - Q: Are they used in automotive or forklift applications?
A: Generally no. They’re predominantly for older industrial electrical panels. - Q: Do they have a distinct advantage over other fuse types?
A: Their main advantage is form-factor compatibility with legacy systems.
Product Recommendations
7. Class G Fuses
Overview
Class G fuses are small, current-limiting fuses rated for 600V or less. They offer time-delay and fast-acting versions and are commonly used in branch circuits, lighting, and small motor applications. Class G fuses are a favorite in control panels where space is limited and moderate to high interrupting capacities are required.
Top 5 Applications
- Lighting circuits
- Small motor loads
- Control transformers
- General-purpose branch circuits
- HVAC systems
Top 5 Reasons to Use Class G Fuses
- Compact design for tight panel spaces
- Time-delay options for motor start-up currents
- High interrupt rating up to 100kA
- Current-limiting to protect sensitive equipment
- UL Listed for a broad range of applications
Top 10 FAQs and Answers
- Q: Can a Class G fuse replace a Class CC fuse?
A: Not usually. Class G and Class CC have different dimensions and rating specifics. - Q: Are Class G fuses appropriate for HVAC systems?
A: Yes, especially for smaller motors and control circuitry. - Q: How do these fuses limit current?
A: They open quickly during high fault conditions, reducing let-through energy. - Q: Do they support high amp values, like 60A or more?
A: Typically, Class G fuses range up to 60A, but check manufacturer lines. - Q: Are they popular in residential settings?
A: They’re more common in industrial or light commercial applications. - Q: Do I need a special holder?
A: Yes. Class G fuses require a Class G fuse holder for proper fit. - Q: Is voltage rating important?
A: Absolutely. Match or exceed your circuit’s voltage requirement. - Q: Are they easy to find?
A: Generally, yes. Most electrical suppliers stock Class G fuses. - Q: Are there time-delay variants?
A: Yes, to handle motor inrush currents without nuisance tripping. - Q: Could these fuses be used in a forklift?
A: Unlikely. Forklifts usually require specialized forklift & truck fuses.
Product Recommendations
8. Class J and CF Fuses
Overview
Class J and Class CF (also called Class J-compatible fuses) are designed for high-performance, current-limiting protection. With interrupt ratings of up to 200kA, a 70a class j fuse or j class fuse is commonly used in motor control centers, HVAC systems, and lighting circuits that demand robust fault protection. They typically feature compact footprints and require dedicated fuse holders or fuse base systems. Some Class J fuses are known for their fuse base class j 3pole quadron panel integration, a popular choice for modular switchgear.
Top 5 Applications
- Motor control and protection
- High-end HVAC systems
- Lighting distribution panels
- Industrial machinery with large inrush currents
- Power distribution cabinets
Top 5 Reasons to Use Class J and CF Fuses
- High interrupt capacity (up to 200kA)
- Space-saving form factor
- Time-delay or fast-acting options for multiple applications
- Easy replacement in fuse base class j 3pole quadron panel systems
- Superior short-circuit protection for valuable equipment
Top 10 FAQs and Answers
- Q: What are bussmann class j fuse ratings?
A: Bussmann Class J fuses typically come in ratings from 1A up to 600A or more, depending on the series. - Q: Are littelfuse class j fuse options interchangeable with Bussmann?
A: If the fuse has the same amp rating and voltage, yes, but always verify physical and performance specs. - Q: What are class j fuses rated to interrupt?
A: Generally up to 200kA short-circuit current at rated voltage. - Q: Do I need a class j fuse reducer?
A: A fuse reducer helps fit smaller fuse ratings into larger fuse blocks. This is application-dependent. - Q: Is there a 100 amp class j fuse or 200 amp class j fuse available?
A: Yes, these ratings are common in industrial applications. - Q: Does 30a class j fuse or 30 amp class j fuse handle motor inrush?
A: Yes, time-delay Class J can manage moderate inrush currents effectively. - Q: Do Class J fuses require special fuse blocks?
A: Yes, they should be mounted in Class J-rated blocks or holders for safety. - Q: Are Class CF fuses the same dimensions as Class J?
A: Class CF are compatible with Class J fuse blocks but always confirm the manufacturer’s specs. - Q: Can these fuses be current limiting fuses?
A: Yes. They’re designed to rapidly reduce fault current levels. - Q: Any typical uses in commercial buildings?
A: Yes, especially for high-reliability applications like large rooftop HVAC units or main distribution panels.
Product Recommendations
9. Class K5 and H Fuses
Overview
Class K5 and Class H fuses are non-current-limiting fuse types generally used for branch circuit protection in older or straightforward setups. Class H fuses can handle up to 250V or 600V depending on design, while fuse class k5 is a variation that provides slightly improved time-delay characteristics. Many still reference older systems, like aic rating of class h fuses or class h fuses 60 amp spec sheet, for legacy equipment in industrial or commercial environments.
Top 5 Applications
- Basic branch circuit protection
- Lighting panels
- Older distribution boards
- Control transformers
- General-purpose circuits
Top 5 Reasons to Use Class K5 and H Fuses
- Widely available and cost-effective
- Suitable for non-complex systems
- Compatible with older fuse panels
- Capable of moderate overcurrent protection
- Simple, traditional design
Top 10 FAQs and Answers
- Q: What is the aic rating of class h fuses?
A: Typically 10kA at rated voltage, though it varies by manufacturer. - Q: Class h fuses 60 amp spec sheet: are these easy to find?
A: Yes, major fuse brands provide detailed spec sheets online. - Q: Class h fuse 20 amp or 30 amp class h fuse—which is more common?
A: Both are common. 30A is perhaps the most frequently used size for small branch circuits. - Q: Class h cartridge fuse—what’s the difference from plug fuses?
A: Cartridge fuses have cylindrical bodies and fit into fuse blocks, while plug fuses screw into special sockets (often in older residential panels). - Q: Are class k5 fuse and Class H dimensionally identical?
A: Yes, they often share the same dimensions but differ in time-current characteristics. - Q: Class h vs class k5 fuse—which is better?
A: Class K5 generally has a more defined time-delay. Class H is simpler and often cheaper. - Q: Can I upgrade from Class H to a current-limiting fuse?
A: You can if the panel supports the new fuse class, but it might need a holder change. - Q: Are these used for motors?
A: Typically for small motors or non-critical loads. For heavy motors, Class J, CC, or RK are often preferred. - Q: Are bussmann class k5 fuse lines common?
A: Yes, Bussmann is a major brand with many K5 options. - Q: What about high amps like 100A or 200A?
A: These are available, but check your local code and fuse panel rating.
Product Recommendations
10. Class L Fuses
Overview
Class L fuses are heavy-duty, high-amperage fuses used mainly in large commercial and industrial electrical systems. With amp ratings extending from 601A to over 6000A, class l fuse solutions are well-suited for main switchboards and feeder circuits. They are current-limiting, offering significant fault protection for critical infrastructure in manufacturing plants, data centers, and large office buildings.
Top 5 Applications
- Main switchboard protection
- Feeder circuits in large facilities
- Large motors and compressors
- Commercial HVAC systems
- Heavy industrial machinery
Top 5 Reasons to Use Class L Fuses
- High amperage range for large power systems
- Strong current-limiting performance
- Reduces arc-flash hazards by limiting fault currents
- Complies with NEC for large feeders
- Robust design for demanding environments
Top 10 FAQs and Answers
- Q: Why select a class l fuse over a circuit breaker?
A: Fuses often provide faster, more reliable short-circuit interruption and can reduce let-through energy significantly. - Q: Are they suitable for 480V or 600V systems?
A: Yes, Class L fuses are typically rated up to 600V AC. - Q: Can Class L fuses be used below 601A?
A: They are usually defined for 601A and above, so other classes handle lower amps. - Q: Are they physically larger than Class J or CC?
A: Yes, significantly, due to their high amp capacity. - Q: Do these fuses require specialized fuse holders?
A: Yes, you need Class L fuse blocks or bolted connections for high amp ratings. - Q: How do I safely test them?
A: De-energize the circuit, remove the fuse, and test continuity with a multimeter if needed. Only qualified personnel should handle high-amperage fuses. - Q: Are Class L fuses time-delay or fast-acting?
A: Many are time-delay for motor start inrush, but check specific product data. - Q: Can they protect large motors?
A: Yes, they’re commonly used for high-horsepower motors in industrial settings. - Q: Are they current limiting fuses?
A: Yes, they significantly reduce fault currents. - Q: Are they often used in data centers?
A: Absolutely, to protect high-capacity power feeds feeding server racks and UPS systems.
Product Recommendations
11. Class RK1 Fuses
Overview
Class RK1 fuses are known for their high interrupting ratings and current-limiting features. Often used in motor circuits and feeder circuits requiring fast response to short-circuit events, these fuses protect against large fault currents. Class RK1 fuse types are also dimensionally interchangeable with RK5 but offer superior current-limiting performance.
Top 5 Applications
- High-efficiency motors
- Industrial control panels
- Main service switches
- Lighting feeders
- Mining equipment
Top 5 Reasons to Use Class RK1 Fuses
- Strong short-circuit interrupting capacity
- Better current-limiting than Class RK5
- Versatile in many industrial applications
- Dimensionally consistent with many fuse blocks
- Time-delay variants help with motor inrush
Top 10 FAQs and Answers
- Q: Are Class RK1 fuses and RK5 fuses interchangeable?
A: They often fit the same fuse blocks, but RK1 offers higher current-limiting capabilities. - Q: Do they come in high amperages?
A: Yes, from small values to hundreds of amps. - Q: Are they used in commercial buildings?
A: Yes, especially where high reliability and short-circuit protection is needed. - Q: Time-delay or fast-acting?
A: Both versions exist; choose based on your load characteristics. - Q: Are they truly current limiting?
A: Absolutely. They significantly reduce fault energy. - Q: Can I replace a Class J fuse with a Class RK1 fuse?
A: Not directly. They have different form factors and holders. - Q: Are they recommended for lighting circuits?
A: Yes, particularly larger commercial lighting feeders. - Q: How do they compare in cost to other fuse classes?
A: They can be slightly more expensive than lower-rated fuses, but they offer superior protection. - Q: What’s a typical application example?
A: Large motor feeders in manufacturing facilities. - Q: Are they available from multiple brands?
A: Yes, major fuse manufacturers offer Class RK1 lines.
Product Recommendations
12. Class RK5 Fuses
Overview
Class RK5 fuses offer reliable overcurrent protection with moderate current-limiting performance. Often interchangeable (dimensionally) with RK1, they generally provide less aggressive current limitation but are still suitable for many industrial and commercial applications. A class rk5 fuse is common in motor circuits that require time-delay features for start-up currents, while a class rk5 fuse holder is used to mount them safely in electrical panels.
Top 5 Applications
- Motors and transformers
- Branch circuit protection
- HVAC equipment
- Commercial lighting panels
- Welding machinery
Top 5 Reasons to Use Class RK5 Fuses
- Cost-effective protection
- Time-delay variant for motor inrush
- Available in a wide range of amperages
- Dimensionally compatible with RK1 holders
- UL Listed for industrial use
Top 10 FAQs and Answers
- Q: Class rk5 fuse vs RK1: which is better?
A: RK1 provides higher current-limiting. RK5 is often more budget-friendly for general applications. - Q: Are they used in large motor applications?
A: Yes, especially if you need a time-delay characteristic. - Q: Do I need a class rk5 fuse holder specifically?
A: Typically yes, but they’re dimensionally similar to RK1, so some holders are dual-rated. - Q: Are they current limiting fuses?
A: Moderately so, but not as much as Class RK1. - Q: How does one test them?
A: Same as others: remove from circuit, use a multimeter for continuity. - Q: Are these fuses standard in new installations?
A: They remain popular, but Class J is also quite common in newer, high-spec installations. - Q: Do they come in fast-acting versions?
A: Yes, but time-delay is more typical for RK5. - Q: Can they handle short-circuit currents?
A: Yes, up to their rated interrupt capacity (often 200kA). Check manufacturer specs. - Q: Are they replaced often in routine maintenance?
A: Only if they blow or degrade. Many remain for years without issue. - Q: Are they more common than Class H or K5?
A: In modern installations, yes, due to better limiting features.
Product Recommendations
13. Class T Fuses
Overview
Class T fuses are ultra-fast, current-limiting fuses available in small physical sizes but with high interrupting ratings (up to 200kA). A class t fuse is often seen in equipment that requires rapid short-circuit protection, such as variable frequency drives (VFDs) or sensitive semiconductors. They come in ratings like class t fuse 400 amp or smaller versions. A class t fuse block is required to ensure safe and secure mounting.
Top 5 Applications
- Variable frequency drives (VFDs)
- UPS systems
- High-end lighting controls
- Semiconductor protection
- Commercial battery backup systems
Top 5 Reasons to Use Class T Fuses
- Extremely high interrupting capacity in a compact size
- Fast-acting design for sensitive electronic components
- Compatible with specialized class t fuse holder or block
- Reduces arc-flash potential in high-fault environments
- Reliable performance in mission-critical systems
Top 10 FAQs and Answers
- Q: Is a t class fuse the same as a Class J fuse?
A: No, Class T is generally faster and has different dimensions. - Q: Class t fuse 400 amp or 400 amp class t fuse—is this common?
A: Yes, especially for large UPS and battery bank protection. - Q: Can I replace a Class T fuse with a Class J fuse?
A: Not without checking compatibility. They have distinct interrupt characteristics and different physical sizes. - Q: Are they used in automotive applications?
A: Rarely. Automotive fuses have specialized forms like blade or bolt-on. - Q: Why are Class T fuses popular in data centers?
A: Their fast-acting nature helps protect sensitive electronics and UPS systems from short circuits. - Q: How do I mount a class t fuse block?
A: Use manufacturer-approved hardware and follow all electrical codes for secure connections. - Q: Are they time-delay fuses?
A: Typically they’re fast-acting. Some variants may have slight time-delay but not like Class RK fuses. - Q: How do I size a Class T fuse?
A: Follow NEC guidelines, considering full load current, inrush, and short-circuit current. Manufacturer charts help. - Q: What voltage are they rated for?
A: Commonly up to 300V or 600V AC, depending on the specific fuse series. - Q: Are spares easy to obtain?
A: They’re less common than Class J or RK, but most industrial suppliers stock them.
Product Recommendations
14. Forklift Limiter Fuses
Overview
Forklift limiter fuses are specialized fuses designed to protect core forklift circuits, especially battery and hydraulic systems, from excessive current. They often function as high-amp, slow-blow fuses, ensuring that short bursts of high current (e.g., motor start-ups) do not blow them prematurely. They are critical for large warehouse forklift fleets.
Top 5 Applications
- Forklift battery circuits
- Motor-driven hydraulic pumps
- Electric industrial carts
- Automatic guided vehicles (AGVs)
- Material handling equipment
Top 5 Reasons to Use Forklift Limiter Fuses
- Protects expensive forklift battery packs
- Handles frequent inrush currents
- Prevents downtime from electrical faults
- Tailored for rugged warehouse environments
- Ensures compliance with vehicle OEM specs
Top 10 FAQs and Answers
- Q: How do forklift limiter fuses differ from standard forklift & truck fuses?
A: Limiter fuses typically have higher continuous current ratings and are specifically designed for battery-fed circuits. - Q: Are they always slow-blow?
A: Most are time-delay to accommodate motor starts, but check specific listings. - Q: Do they come in standard automotive sizes?
A: Often they’re larger and have bolt-on or specialized terminals for forklift battery connections. - Q: Can I use them for trucks?
A: They’re primarily designed for forklifts, but some heavy vehicles might benefit if specs match. - Q: Are forklift limiter fuses current limiting fuses?
A: They can limit current, but they’re typically not as fast as Class T or CC fuses. - Q: How do I size them?
A: Follow OEM guidelines. Forklift manufacturers usually provide rated amperage recommendations. - Q: Does my fuse says .5 amp what voltage can it handle matter here?
A: Typically, forklift limiter fuses are rated much higher than 0.5A. Voltage ratings do matter, though. Always match your forklift’s system voltage. - Q: Are they easy to replace?
A: Yes, if you have the right tools. They’re usually in a fuse block near the battery. - Q: Will forklift limiter fuses blow from short power surges?
A: Not usually, thanks to their time-delay characteristics. They’re designed for forklift motor inrush. - Q: Can I check them with a multimeter?
A: Yes. Remove them from the circuit first for an accurate continuity test.
Product Recommendations
15. Medium Voltage Fuses
Overview
Medium voltage fuses protect systems operating above 600V and up to several kV, such as distribution transformers and switchgear. Medium voltage fuses are critical in utility and heavy industrial power distribution, where they safeguard transformers, motors, and other equipment from extreme fault currents.
Top 5 Applications
- Utility power distribution
- Industrial substations
- Large motor drives (1kV–5kV)
- Mining equipment
- Public infrastructure (e.g., subway systems)
Top 5 Reasons to Use Medium Voltage Fuses
- Essential protection for high-voltage systems
- Reduces damage in the event of major faults
- Protects transformers and switchgear investments
- Meets utility and industrial code requirements
- Offers current-limiting benefits at higher voltages
Top 10 FAQs and Answers
- Q: How are medium voltage fuses different from low-voltage fuses?
A: They have higher voltage ratings, different design, and typically much larger interrupting capacity. - Q: Are they used in commercial buildings?
A: Typically in high-rise buildings with dedicated medium voltage feed, but more common in industrial plants or utility grids. - Q: Can they be tested with a standard multimeter?
A: Continuity checks are possible, but voltage and safety considerations are much greater. Only qualified personnel should handle them. - Q: Do they come in different speeds (time-delay or fast-acting)?
A: Yes, to accommodate transformer magnetizing currents or motor inrush. - Q: Are they current limiting fuses?
A: Many are designed to be current-limiting at the higher voltage range. - Q: How do they physically differ from low-voltage fuses?
A: They’re larger, sometimes use an expulsion fuse design, and require specialized fuse holders. - Q: What’s the typical voltage range?
A: Anywhere from 1kV to around 38kV, depending on the design. - Q: Do they protect against lightning surges?
A: They can help with overcurrent scenarios, but lightning arresters are typically used for direct surge protection. - Q: Are they user-serviceable?
A: Generally, only qualified electricians or utility workers with proper PPE and procedures should replace them. - Q: Can a bad capacitor blow a fuse in a medium voltage scenario?
A: Yes. Capacitor banks at medium voltage can fail and cause overcurrents that blow fuses.
Product Recommendations
16. Midget Fuses
Overview
Midget fuses are small, cylindrical fuses measuring 13/32" x 1-1/2". Used for supplemental protection in control circuits, they can be either fast-acting or time-delay. Midget fuses are found in applications where standard branch-circuit fuses are too large, but a fuse is still necessary for localized overcurrent protection.
Top 5 Applications
- Control circuits
- Electronic power supplies
- Lighting ballasts
- Low-power motors
- Instrumentation panels
Top 5 Reasons to Use Midget Fuses
- Compact size for tight spaces
- Broad selection of time-delay or fast-acting variations
- Ideal for low-current circuits
- Simple to replace and widely available
- UL and CSA recognized for supplemental protection
Top 10 FAQs and Answers
- Q: Do midget fuses replace standard branch-circuit fuses?
A: No, they’re for supplemental protection only. - Q: What’s a midget fuse holder?
A: It’s a fuse block designed to accommodate the 13/32" diameter and 1-1/2" length of midget fuses. - Q: Are they used for high amperage?
A: Typically they’re under 30A. - Q: How do I check them?
A: Remove from the holder and test continuity with a multimeter. - Q: Are they current limiting fuses?
A: Some midget fuses are current limiting, but always verify in the datasheet. - Q: Time-delay or fast-acting?
A: Both types exist. Choose based on load inrush requirements. - Q: Are these commonly used in automotive?
A: Not usually. Automotive has blade or cartridge fuses specifically made for vehicles. - Q: What voltage can they handle?
A: Many are rated up to 250V or 600V. Check product specs. - Q: Are they easy to find replacements for?
A: Yes, many suppliers carry them. - Q: Can they protect semiconductors?
A: Yes, certain fast-acting versions are designed for semiconductor circuits.
Product Recommendations
17. Multimeter Fuses
Overview
Multimeter fuses protect the internal circuitry of digital or analog multimeters from overcurrent conditions, particularly when measuring current in amps mode. They are typically specialized ceramic or glass fuses with high interrupt ratings. Knowing how to check a fuse with a multimeter is essential for diagnosing a blown meter fuse. Also, a 10 amp inline fuse for a multimeter is one common replacement rating.
Top 5 Applications
- Handheld multimeters
- Bench-top multimeters
- Clamp meters (with internal fuse protection)
- Automotive diagnostic tools
- HVAC and electrical testing devices
Top 5 Reasons to Use Multimeter Fuses
- Prevents damage to the meter’s circuitry
- Protects users from dangerous short-circuit currents
- Ensures meter accuracy and reliability
- Mandatory for compliance with safety standards
- Simple to replace if you blow a fuse while measuring
Top 10 FAQs and Answers
- Q: How to check a fuse with a multimeter if the fuse in question is inside the meter?
A: Remove the fuse from the meter, then use another multimeter set to continuity or resistance mode. If it reads open, the fuse is blown. - Q: How to test a fuse using a multimeter in general?
A: The concept is the same. Set to continuity or low-ohms, place test leads across the fuse, and look for a near-zero reading for a good fuse. - Q: What is a 10 amp inline fuse for a multimeter?
A: It’s a fuse rated at 10A used in the meter’s high-current measurement port to protect it from excessive current. - Q: Are these fuses ceramic or glass fuses?
A: They can be either, but ceramic is more common for higher interrupt ratings. - Q: Do I need a specific brand (e.g., Fluke, Craftsman) fuse?
A: You must match the rating and speed (fast vs time-delay), but brand-specific fuses can ensure exact fit. - Q: Are they current limiting fuses?
A: Yes, they must quickly interrupt high fault currents to protect the meter and user. - Q: What if I install a higher-rated fuse?
A: This compromises safety and meter protection. Always use the specified rating. - Q: Is how to check a fuse with a multimeter relevant if the meter fuse is intact?
A: Yes, you might also check other fuses in your equipment using the meter. - Q: Can these fuses handle automotive measurements?
A: Yes, if the fuse and meter are properly rated for automotive current ranges. - Q: How often do I need to replace them?
A: Only when they blow due to an overcurrent event or if they degrade over many uses.
Product Recommendations
18. Plug Fuses
Overview
Plug fuses are a traditional style of fuse used mostly in older residential panels, screwing into a socket that looks similar to a light bulb socket. Plug fuses come in various time-delay ratings and amp capacities, providing overcurrent protection for circuits in older homes or small commercial buildings. While more modern circuit breakers have largely replaced them, they are still found in many legacy panels.
Top 5 Applications
- Older residential fuse panels
- Small commercial buildings with legacy systems
- Temporary lighting or event setups
- Workshop sub-panels
- Agricultural barns with older electrical installs
Top 5 Reasons to Use Plug Fuses
- Maintains existing legacy systems without costly upgrades
- Simple replacement and easy to find
- Some are time-delay to handle motor loads
- Clear labeling for amp rating
- Proven technology over decades of use
Top 10 FAQs and Answers
- Q: Are plug fuses still up to code?
A: If installed correctly in a panel designed for them, they can be code-compliant. Always check local regulations. - Q: Do they come in different shapes?
A: They typically have the same screw-in base but can differ in shape for time-delay vs fast-acting versions. - Q: What is the typical amp range?
A: Commonly 15A, 20A, and 30A, though other ratings exist. - Q: Can I use them for 240V?
A: They’re generally used in 120V circuits. For higher voltages, other fuse classes are more appropriate. - Q: Are these ceramic or glass fuse types?
A: They can be a combination, with a ceramic body and glass internal window or fully ceramic bodies. - Q: Do they have an aic rating?
A: Yes, but typically lower than modern cartridge fuses. Check manufacturer specs. - Q: Why not upgrade to circuit breakers?
A: Cost and complexity of panel replacement is a factor for many building owners. - Q: Are they safe?
A: If used within their ratings and installed properly, yes. But they lack some advanced safety features of modern breakers. - Q: What about time-delay vs fast-acting plug fuses?
A: Time-delay (often labeled “T”) handle brief motor inrush currents. Fast-acting (often labeled “F”) blow quicker under overload. - Q: How do I test them?
A: Remove from the socket and check continuity with a multimeter.
Product Recommendations
19. Solar Fuses
Overview
Solar fuses are designed for overcurrent protection in photovoltaic (PV) systems. They must handle high DC voltages and occasional fault currents that can arise in solar panel arrays. Solar fuses often feature time-delay characteristics for inrush currents during sunrise and rapid changes in sunlight conditions. Choosing the right rating ensures your investment in solar infrastructure remains safe and operational.
Top 5 Applications
- Residential rooftop solar systems
- Commercial PV installations
- Utility-scale solar farms
- Off-grid battery-backed solar systems
- Hybrid solar-wind solutions
Top 5 Reasons to Use Solar Fuses
- Specifically designed for high DC voltage
- Protect expensive solar panels and inverters
- Meet UL and IEC standards for PV systems
- Handle variable current due to changing sunlight
- Reduce fire risk from solar array faults
Top 10 FAQs and Answers
- Q: Are solar fuses mandatory?
A: For most code-compliant PV installations, yes. They protect from DC overcurrent conditions. - Q: Are they different from standard DC fuses?
A: They’re specially tested and rated for PV array conditions, including high open-circuit voltages. - Q: Time-delay or fast-acting?
A: Typically time-delay to accommodate inrush currents when sunlight quickly increases. - Q: Voltage ratings for solar fuses?
A: They can range up to 1000V DC or more, depending on system design. - Q: Can I use them in wind power systems?
A: Potentially yes, but check manufacturer’s data for wind system compatibility. - Q: Do I need separate fuses for each string of panels?
A: Often yes, each string is fused to isolate faults and protect other strings. - Q: Are they current limiting fuses?
A: Many are designed to interrupt high DC fault currents quickly, effectively limiting damage. - Q: What about negative or grounded arrays?
A: Wiring configurations differ; consult a solar installer or engineer for fuse placement. - Q: Can I test them with a standard multimeter?
A: For continuity, yes. But ensure all solar power is disconnected (daylight or battery) first. - Q: How do I size a solar fuse?
A: Typically 125% of the short-circuit current from the PV array. Follow NEC guidelines.
Product Recommendations
20. Telecom Protection Fuses
Overview
Telecom protection fuses safeguard telephone and communication lines from overcurrents and voltage surges. Often used alongside surge protectors and gas tube arresters, these fuses ensure that sensitive telecom equipment remains operational. Telecom protection fuses are crucial for maintaining reliable communications in business, data centers, and public infrastructures.
Top 5 Applications
- Telephone line protection
- DSL and cable modems
- Data center telecom equipment
- Public switching offices
- Remote communication towers
Top 5 Reasons to Use Telecom Protection Fuses
- Prevent costly downtime in communications
- Protect expensive networking hardware
- Comply with telecom industry standards
- Combine with surge arresters for layered protection
- Compact design fits typical telecom modules
Top 10 FAQs and Answers
- Q: Are telecom protection fuses the same as data line fuses?
A: They’re similar; both protect sensitive communication circuits. Check specs for each application. - Q: Can they handle lightning surges?
A: They can help, but typically they’re paired with lightning/surge arresters for full protection. - Q: Do they come in different amp ratings?
A: Yes, usually in lower amps because telecom lines have minimal current flow under normal conditions. - Q: Are they current limiting fuses?
A: Often yes, to quickly isolate surges or shorts. - Q: How do I know the fuse is blown?
A: Conduct a continuity check or observe a line fault in the telecom monitoring system. - Q: Do they need special holders?
A: Some use standard fuse holders, others mount directly on telecom line modules. - Q: Can I use them for data networks like Ethernet?
A: Usually, separate specialized fuses or surge protectors are used for Ethernet. Consult your hardware manual. - Q: Are these fuses used in VoIP systems?
A: Traditional telecom fuses may still be used if there's a POTS (plain old telephone service) line integrated. Purely digital lines might require different protection. - Q: Are they fast-acting?
A: Typically they’re fast-acting to quickly respond to transient spikes. - Q: Do I need a large supply of spares?
A: Having spares is wise if your telecom network is mission-critical.
Product Recommendations
21. Automotive Blade Fuses
Overview
Automotive blade fuses are the most common type in modern vehicles. They slot into a blade fuse box under the hood or dashboard. Various automotive blade fuse types include Micro, Mini, Standard, and Maxi fuses, each with different physical sizes and amperage ranges. From headlights to infotainment systems, these fuses protect vehicle circuits from overloads.
Top 5 Applications
- Car headlights and lighting circuits
- Radio and infotainment systems
- Power windows and seats
- Accessory circuits (e.g., phone chargers)
- Aftermarket installations (e.g., dash cams)
Top 5 Reasons to Use Automotive Blade Fuses
- Standard across most modern vehicles
- Easy to identify by color coding
- Simple plug-and-play replacement
- Compact and reliable for DC automotive use
- Widely available at auto parts stores
Top 10 FAQs and Answers
- Q: What are automotive blade fuse types?
A: Common variants are Micro, Mini (ATM), Standard (ATO), and Maxi. Each differs in size and amperage range. - Q: What does an automotive blade fuse box look like?
A: It’s typically a rectangular or square plastic box housing multiple fuses, often labeled with amp ratings. - Q: Are truck fuses the same as automotive blade fuses?
A: Many trucks use similar blade fuses, but heavy trucks may have higher-rated fuses or special types. - Q: Can I use a 20A fuse in place of a 15A if the 15A keeps blowing?
A: No, that could risk wiring damage or fire. Always match the rated amperage. - Q: Are these fuses glass vs ceramic fuse?
A: No, they’re plastic-bodied with metal blade terminals. - Q: How do I remove a blown blade fuse?
A: Use a fuse puller or small pliers. Always disconnect power or turn off ignition first. - Q: Are they used in boats or motorcycles?
A: Yes, many marine and motorcycle applications use blade fuses as well. - Q: How to check them with a multimeter?
A: Remove the fuse, set the multimeter to continuity or ohms. If no continuity, fuse is blown. - Q: Are they current limiting fuses?
A: Not in the strict sense. They protect from overload but do not have significant current-limiting capabilities like some industrial fuses. - Q: Do they come in high amps like 80A or 100A?
A: That would be a Maxi fuse. Standard blade fuses typically go up to around 40A.
Product Recommendations
22. Automotive Cartridge Fuses
Overview
Automotive cartridge fuses provide a cylindrical style of protection in certain vehicle circuits. Often found in older imports or specialized systems, these automotive cartridge fuse types can handle moderate to high currents. They’re often physically larger than blade fuses and may require special fuse holders.
Top 5 Applications
- European import vehicles
- Some commercial and agricultural vehicles
- Audio amplifier circuits
- High-current accessories (e.g., winches)
- Customized aftermarket installations
Top 5 Reasons to Use Automotive Cartridge Fuses
- Legacy compatibility with certain vehicle designs
- Wide range of amperages
- Better for higher current loads than mini blade fuses
- Reliable construction for harsh environments
- Easy to visually inspect if it’s a glass cartridge
Top 10 FAQs and Answers
- Q: Are these the same as American glass and ceramic fuses?
A: Similar in shape but rated specifically for automotive DC environments and may differ in length or diameter. - Q: Do they come in ceramic versions?
A: Yes, ceramic fuse types exist for automotive cartridges, especially in higher amp ratings. - Q: How do I identify the amperage rating?
A: It’s typically stamped or printed on the fuse end caps. - Q: Are these used in new cars?
A: Most newer cars use blade fuses, but some manufacturers still employ cartridge fuses for specific circuits. - Q: How to replace them safely?
A: Turn off the vehicle’s power, locate the fuse holder, and swap with the same rating fuse. - Q: Do they handle high amps like 50A or more?
A: Yes, automotive cartridge fuses often handle up to 80A or more. - Q: Are they time-delay or fast-acting?
A: Most automotive cartridges are fast-acting, though some slow-blow types exist for specialized circuits. - Q: Can they blow from a bad capacitor in a car audio system?
A: Yes, a shorted capacitor could cause an overcurrent, blowing the fuse. - Q: Are they widely available?
A: Many auto parts stores carry them, though less commonly than blade fuses. - Q: Can I use them for boat or marine applications?
A: Possibly, but verify it’s marine-rated for corrosion resistance.
Product Recommendations
23. Automotive Glass Fuses
Overview
Automotive glass fuses are found in older or classic cars and some specialty applications. They are cylindrical, typically 1/4" x 1-1/4" in size, with metal end caps. Automotive glass fuses (sometimes noted as glass fuses automotive) help protect circuits such as lights, ignition, and radio systems from overcurrent. Glass automotive fuses are still available for restorations and maintenance.
Top 5 Applications
- Classic or antique cars
- Motorcycle circuits (older models)
- Custom hot rods and restoration projects
- Marine vehicles with legacy wiring
- Specialty power accessory circuits
Top 5 Reasons to Use Automotive Glass Fuses
- Preserves original vehicle specifications
- Easy to visually see if blown
- Readily available in auto parts stores
- Straightforward replacement process
- Wide variety of amp ratings
Top 10 FAQs and Answers
- Q: Glass fuses automotive—are they different from standard household glass fuses?
A: Yes, they’re rated for DC automotive environments. Dimensions might match, but always check the rating. - Q: How do I test them?
A: Remove the fuse and use a multimeter for continuity. Visually, a broken filament often indicates a blown fuse. - Q: Can I swap them for blade fuses?
A: You’d need a retrofit kit or new fuse block. Not a simple plug-and-play replacement. - Q: Do they come in time-delay variants?
A: Most are fast-acting. Some manufacturers offer slow-blow, but it’s less common. - Q: Can they blow due to a bad capacitor in the audio system?
A: Yes, any short-circuit or overcurrent can blow these fuses. - Q: Are they more fragile than ceramic fuses?
A: The glass tube can crack under extreme vibration, so ceramic can be more robust in harsh conditions. - Q: What’s the highest amp rating available?
A: Often up to around 30A for automotive glass types. - Q: Are they suitable for new vehicles?
A: Most new vehicles use blade fuses. Glass fuses are mostly legacy or specialty now. - Q: Are there any color codes?
A: Automotive glass fuses typically rely on stamped amp markings rather than color-coded bodies. - Q: Do I need a special holder?
A: Yes, a cylindrical holder or clips specifically sized for 1/4" x 1-1/4" fuses.
Product Recommendations
24. Automotive High Current Bolt on Fuses
Overview
Automotive high-current bolt-on fuses handle heavy amperage loads and are bolted directly onto battery terminals or distribution blocks. From 40A up to several hundred amps, these bolt on fuse units protect power-hungry devices like amplifiers, winches, and auxiliary battery systems. Common variants include 40 amp bolt on fuse or 50 amp bolt on fuse, extending to higher ratings for commercial or off-road vehicles.
Top 5 Applications
- High-power car audio systems
- Off-road vehicle accessories (e.g., light bars, winches)
- Truck refrigeration units
- RV battery and inverter systems
- Marine or boat battery distribution
Top 5 Reasons to Use Automotive High Current Bolt on Fuses
- Secure mechanical attachment for high vibration environments
- Handles large currents beyond standard blade fuses
- Protects critical systems like winches from overcurrent
- Wide range of ratings (40A to 300A+)
- Ideal for custom or specialized automotive builds
Top 10 FAQs and Answers
- Q: How does a bolt on fuse differ from a maxi blade fuse?
A: Bolt-on styles have lugs with holes for screws or bolts, ensuring a tight connection for higher currents. - Q: 40 amp bolt on fuse vs 50 amp bolt on fuse: Which one for my accessory?
A: Select a fuse that matches or slightly exceeds the accessory’s rated current draw, but not so high that it won’t protect the wiring. - Q: Can these fuses be used in forklifts?
A: Potentially, but forklifts often use specialized forklift limiter fuses or high current forklift fuses. - Q: Are they time-delay or fast-acting?
A: Many are fast-acting, though some slow-blow variants exist for large inductive loads. - Q: Are they easy to replace?
A: Yes, with the right tools (wrenches or sockets), but always disconnect the battery first. - Q: What’s the maximum rating?
A: Some lines go up to 300A or more, depending on the manufacturer. - Q: Can I mount them under the hood?
A: Yes, they’re commonly placed near the battery or distribution block. Ensure they’re protected from excessive moisture or heat. - Q: How do I test them?
A: Remove the connecting bolts and use a multimeter for continuity or resistance check. - Q: Are they ceramic fuse vs glass fuse inside?
A: Usually they’re a metal strip encased in plastic. Different from typical glass or ceramic tubes. - Q: Do I need a dedicated fuse holder?
A: They often bolt directly to the terminal, but some manufacturers offer separate holders or brackets for secure mounting.
Product Recommendations
25. Primary Locations & Possible Alternatives
Fuses are found in a wide range of locations, from industrial manufacturing floors to commercial buildings, offices, residential fuse panels, automotive vehicles, and even specialized power distribution centers. In modern commercial setups, Class J, Class CC, and Class T fuses dominate due to their high interrupting ratings and space-saving designs. Older facilities may still rely on Class H, Class D, or plug fuses.
For certain applications like EV charging stations, advanced current limiting fuses or specifically approved high-speed semiconductor fuses might be used instead of traditional glass or ceramic fuses. As solar installations grow, solar fuses have also become more mainstream, offering specialized DC overcurrent protection. If fuses are not ideal for your setup, circuit breakers, thermal cutouts, or advanced electronic protection modules could be alternatives. However, for many industrial, automotive, and commercial scenarios, a properly rated fuse remains the safest, most cost-effective solution.
26. Final Thoughts
Choosing the right fuse for your truck, forklift, industrial facility, or commercial building is essential. From glass fuse vs ceramic fuse debates to high-performance Class J fuses or specialized multimeter fuses, the spectrum of products on the market is vast—because each application has unique needs. Remember to check for voltage ratings (e.g., “my fuse says .5 amp what voltage can it handle”), consult a fuse voltage drop chart if necessary, and always follow OEM or electrical code guidelines. Proper fuse selection can avert costly downtime, protect valuable equipment, and ensure the safety of everyone on-site. We hope this guide helps you navigate the many options and select the fuse and accessories that keep your operation protected and productive.
