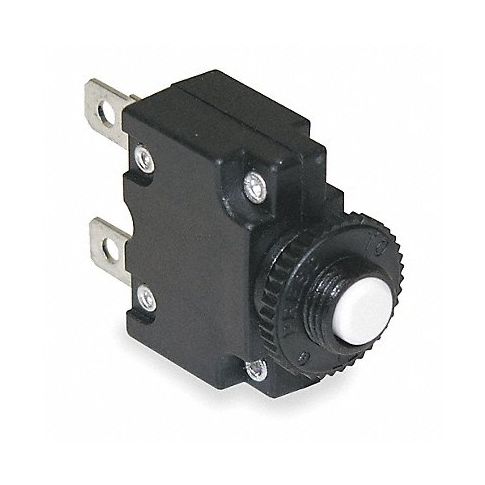

Circuit Breaker 5A Thermal 125/250VAC MPN:CMB-053-11C3N-W-A/05

These miniature circuit breakers use a push button actuator to manually switch the breaker on and off. They're typically used in household appliances, power strips, medical equipment, audio/visual equipment, and other electrical applications to prevent damage from overcurrents and short circuits. They mount on the front panel of the equipment.

Technical Specifications

• Item Panel Mount Circuit Breaker
• Amps 5 A
• AC Voltage Rating 125/250V AC
• Terminal Connection 1/4 in Tab
• DC Voltage Rating 32V DC
• Circuit Breaker Type Thermal
• Number of Poles 1
• Circuit Breaker Actuator Push Button
• Max. AIR Rating Not Rated
• Curve Type Medium
• Phase 1
• Mounting Type 11mm Collar
• Actuator Color White
• Actuator Legend Press to Reset
• Panel Cutout Size 0.441 in x 0.394 in
• Max. Panel Thickness 0.118 in
• Mounting Hole Thread Size M11
• Max. Wire Size 14 AWG
• Length 1.15 in
• Width 0.55 in
• Depth 1.78 in
• Min. Operating Temp. 14 Degrees F
• Max. Operating Temp. 140 Degrees F
• Standards CE, CSA, cUL, TUV, UL, UL 1500/ISO8846 for Ignition Protection/Marine

Manufacturer Details

• Manufacturer: Carling
• Condensed Mfg Number: CMB05311C3NWA05
• MPN: CMB-053-11C3N-W-A/05

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: TW
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536200040
• GDS Category Name: Panel Mount Circuit Breakers
• GDS Family Name: Distribution
• GDS Segment Name: Electrical
• UNSPSC: 39121601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Circuit protection devices and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Circuit breakers
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
