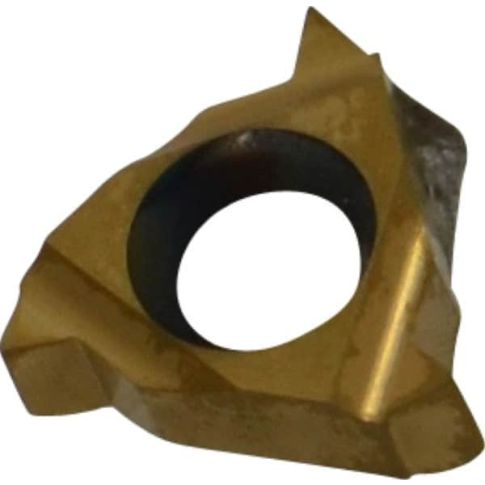

Laydown Threading Insert: 11 IR A60 BXC, Solid Carbide MPN:11IRA60BXC
Laydown Threading Insert: 11 IR A60 BXC, Solid Carbide MPN:11IRA60BXC is available to buy in increments of 10
Laydown Threading Insert: 11 IR A60 BXC, Solid Carbide
Laydown Threading Insert: 11 IR A60 BXC, Solid Carbide TiN Finish, Right Hand Internal Partial Profile 60degree Thread, 48-16 TPI, 1/4" Inscribed Circle, 0.127" Thick
Product Information
- : 11IRA60BXC
- Coating Process: PVD
- Coating/Finish: Coated
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.2500
- Inscribed Circle (Inch): 1/4
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 11
- Insert Style: 11IR
- Manufacturer Grade: BXC
- Msc/Manufacturer Number: 11IR A60
- Pitch (mm): 0.50 to 1.50
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Standards: CE; ISO 13485:2016; ISO 14001:2015; ISO 45001
- Thickness (Decimal Inch - 4 Decimals): 0.1270
- Thread Type: Internal
- Threads Per Inch: 48-16
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: Yes
- Country of Origin: Coo Data Unavail
- TAA Compliant: No
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.00
- Prohibited States: AK,HI,PR
Product info last updated on July 1, 2024 12:01am UTC
Category: Threading and Thread Mill Inserts
