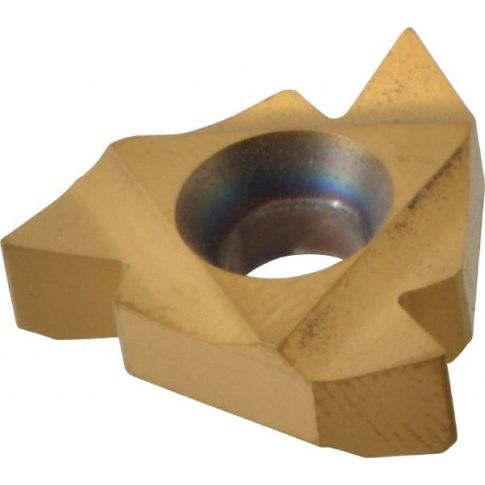

Laydown Threading Insert: 22 IR N60 BXC, Solid Carbide MPN:22IRN60BXC
Laydown Threading Insert: 22 IR N60 BXC, Solid Carbide MPN:22IRN60BXC is available to buy in increments of 10
Laydown Threading Insert: 22 IR N60 BXC, Solid Carbide
Laydown Threading Insert: 22 IR N60 BXC, Solid Carbide TiN Finish, Right Hand Internal Partial Profile 60degree Thread, 7-5 TPI, 1/2" Inscribed Circle, 0.187" Thick
Product Information
- : 22IRN60BXC
- Coating Process: PVD
- Coating/Finish: Coated
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.5000
- Inscribed Circle (Inch): 1/2
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 22
- Insert Style: 22IR
- Manufacturer Grade: BXC
- Pitch (mm): 3.50 to 5.00
- Primary Workpiece Material: Universal
- Primary Workpiece Material Code: H; K; M; N; P; S
- Standards: CE; ISO 13485:2016; ISO 14001:2015; ISO 45001
- Thickness (Decimal Inch - 4 Decimals): 0.1870
- Thread Type: Internal
- Threads Per Inch: 7-5
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Prohibited States: AK,HI,PR
Product info last updated on July 16, 2024 12:02pm UTC
Category: Threading and Thread Mill Inserts
