Grooving Insert: 16ER/IL0.062 BXC, Solid Carbide MPN:16ER/IL0.062BXC
Grooving Insert: 16ER/IL0.062 BXC, Solid Carbide MPN:16ER/IL0.062BXC is available to buy in increments of 10

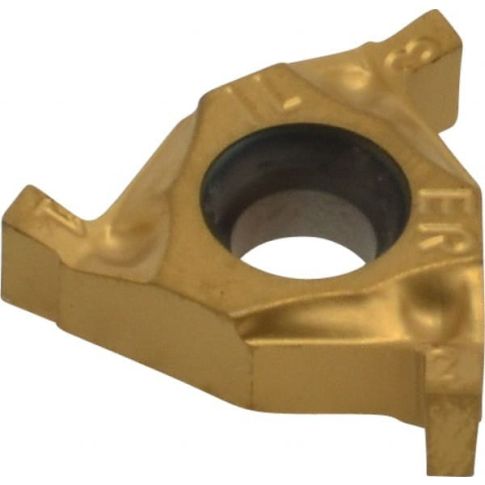

Grooving Insert: 16ER/IL0.062 BXC, Solid Carbide
Grooving Insert: 16ER/IL0.062 BXC, Solid Carbide TiN Finish, Left Hand & Right Hand, 0.062" Cutting Width, 0.075" Max Depth, Series 16
Product Information
- : 16ER/IL0.062BXC
- Coating Process: PVD
- Coating/Finish: TiN
- Corner Radius (Decimal Inch): 0.0040
- Cutting Tool Application: Grooving
- Cutting Width (Decimal Inch): 0.0620
- External Relief Angle: 10
- Full Radius: No
- Hole Diameter (Decimal Inch): 0.1570
- Inscribed Circle (Inch): 3/8
- Insert Hand: Left Hand; Right Hand
- Insert Material: Solid Carbide
- Insert Size: 0.062
- Insert Size Code: 0062
- Insert Style: 16ER/IL
- Internal Relief Angle: 15
- Manufacturer Grade: BXC
- Material Grade: C6
- Maximum Depth of Cut (Decimal Inch): 0.0750
- Maximum Depth of Cut Range (Decimal Inch): 0.0750 to 0.1000
- Multi-Use Tool: No
- Overall Length (mm): 16.00
- Primary Workpiece Material: Cast Iron; Steel
- Primary Workpiece Material Code: K; P
- Rake: Positive
- Rake Angle: 15.00
- Series: 16
- Standards: ISO
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.12
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 5:15am UTC
Category: Grooving Inserts
