Grooving Insert: 16IR/EL0.055 BXC, Solid Carbide MPN:16IR/EL0.055BXC
Grooving Insert: 16IR/EL0.055 BXC, Solid Carbide MPN:16IR/EL0.055BXC is available to buy in increments of 10

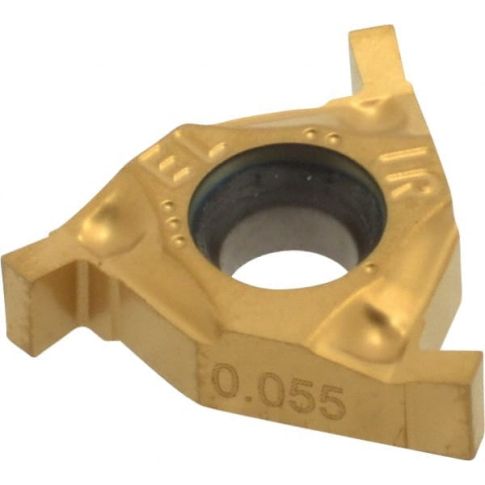

Grooving Insert: 16IR/EL0.055 BXC, Solid Carbide
Grooving Insert: 16IR/EL0.055 BXC, Solid Carbide TiN Finish, Left Hand & Right Hand, 0.055" Cutting Width, 0.071" Max Depth, Series 16
Product Information
- : 16IR/EL0.055BXC
- Coating Process: PVD
- Coating/Finish: TiN
- Corner Radius (Decimal Inch): 0.0040
- Cutting Tool Application: Grooving
- Cutting Width (Decimal Inch): 0.0550
- External Relief Angle: 10
- Full Radius: No
- Hole Diameter (Decimal Inch): 0.1570
- Inscribed Circle (Inch): 3/8
- Insert Hand: Left Hand; Right Hand
- Insert Material: Solid Carbide
- Insert Size: 0.055
- Insert Size Code: 0055
- Insert Style: 16IR/EL
- Internal Relief Angle: 15
- Manufacturer Grade: BXC
- Material Grade: C6
- Maximum Depth of Cut (Decimal Inch): 0.0710
- Maximum Depth of Cut Range (Decimal Inch): 0.0000 to 0.0750
- Multi-Use Tool: No
- Overall Length (mm): 16.00
- Primary Workpiece Material: Cast Iron; Steel
- Primary Workpiece Material Code: K; P
- Rake: Positive
- Rake Angle: 15.00
- Series: 16
- Standards: ISO
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IL, Israel
- TAA Compliant: Yes
- UNSPSC: 23242105
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.12
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 3:47am UTC
Category: Grooving Inserts
