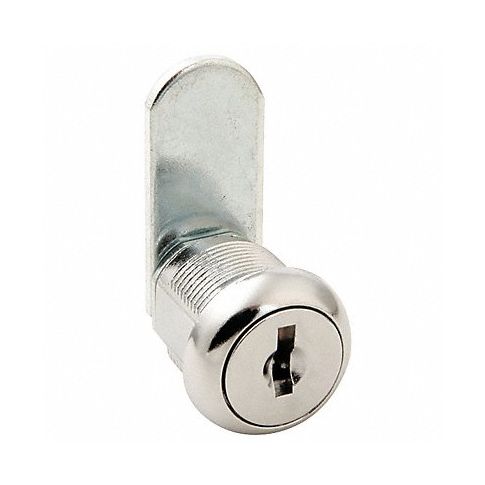

Cam Lock For Thickness 7/8 in Chrome MPN:65011

Disc tumbler keyed cam locks have a row of discs inside that must be aligned with the correct key to open. They're harder to pick than pin tumbler keyed cam locks because they require specialized tools to break in. These cam locks install in furniture to protect the contents from theft or unauthorized use.

Technical Specifications

• Item Disc Tumbler Keyed Cam Lock
• Keyed Cam Lock Type Disc Tumbler Keyed Cam Lock
• Keying Keyed Alike
• Master Key Code KA-C415A
• For Material Thickness 7/8 in
• Mounting Hole Dia. 3/4 in
• Latching Distance 1 1/8 in
• Lock Brand CCL
• Cam Type Straight, Offset
• Straight Cam Length 1 1/4 in
• Straight Cam Width 5/8 in
• Offset Cam Length 1 1/8 in
• Offset Cam Width 5/8 in
• Security Level General Security
• For Material Metal
• Unlock Turn Direction Clockwise, Counterclockwise
• Keyway Type CCL C415A
• Key Retaining No
• Interchangeable Core No
• Lock Body Material Zinc Die-Cast
• Lock Body Finish Chrome-Plated
• Includes Mounting Hardware Yes
• Mounting Hardware Required Yes
• Number of Keys 2
• Number of Locks in Pack 1
• Weather Resistant No
• Number of Pins 5
• Cylinder Length 7/8 in
• Series 650/651
• Body Color Silver
• Unlocking Radius Quarter-Turn
• Opens With Key

Manufacturer Details

• Manufacturer: CCL
• Condensed Mfg Number: 65011
• MPN: 65011

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: Y
• CA Prop 65 Warning Msg Scenario: 7

Classification Details

• Harmonization Code: 8301406030
• GDS Category Name: Keyed Cam Locks
• GDS Family Name: Specialty Locks
• GDS Segment Name: Security
• UNSPSC: 46171513
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Locks and security hardware and accessories
• UNSPSC Commodity ID: 13
• UNSPSC Commodity Name: Locking cam
• UNSPSC Family ID: 17
• UNSPSC Family Name: Security surveillance and detection
• UNSPSC Segment ID: 46
• UNSPSC Segment Name: Defense and Law Enforcement and Security and Safety Equipment and Supplies

Shipping Details

• Not For Sale In: HI AK PR
