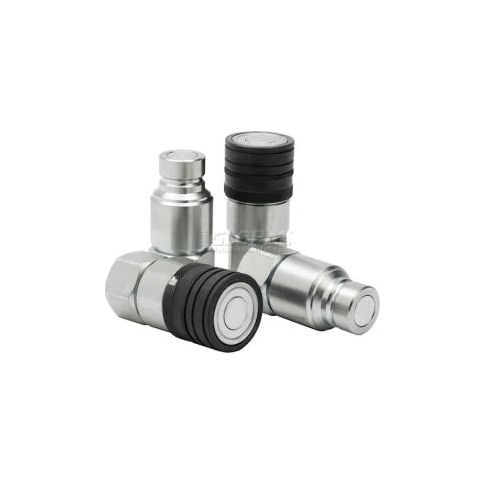

Cejn® Hydraulic Flat Face Nipple (ISO 16028) 1/2" Body Size 1/2" Female NPT 10-565-6405
Cejn® Hydraulic Flat Face Nipple (ISO 16028) 1/2" Body Size 1/2" Female NPT 10-565-6405
Cejn® ISO 16028 Nipple, 1/2" Body Size, 1/2" NPT Female
Cejn® Series 565 is a Flat-Face quick-connect coupling according to and exceeding the ISO 16028 Standard for low and medium pressure hydraulic applications. The Flat-Face design minimizes spillage during connection and disconnection. Series 565 couplings require only one hand for operation, making connection and disconnection fast and easy. Series 565 couplings feature manual security locking as added protection against involuntary disconnection. *Flat-Face Design *One-hand Operation *Extra Locking Security
Cejn® Series 565 is a Flat-Face quick-connect coupling according to and exceeding the ISO 16028 Standard for low and medium pressure hydraulic applications. The Flat-Face design minimizes spillage during connection and disconnection. Series 565 couplings require only one hand for operation, making connection and disconnection fast and easy. Series 565 couplings feature manual security locking as added protection against involuntary disconnection. *Flat-Face Design *One-hand Operation *Extra Locking Security
Product Specifications
- BRANDCejn®
- MANUFACTURERS PART NUMBER10-565-6405
- STYLEHydraulic Flat Face Nipple
- CONNECTION TYPE1/2" Female NPT
- CONSTRUCTIONSteel (Zinc Passivation)
- TYPESeries 565
- PSI5801
- NOMINAL FLOW DIAMETER1/2"
- MINIMUM BURST PRESSURE2030
- TEMPERATURE RANGE-4°F to +212°F
- INTERCHANGEARO Interchange
- STANDARDISO 16028
- CONNECTION CONFIGURATIONNipple
- BODY SIZE INCHES1/2
- SERIES565
- DESCRIPTIONFlat-Face Quick Connect Nipple
- SEAL MATERIALNBR
- GPM (Gallons Per Minute)11.9
Additional Information
- UNSPSC: 27131613
- Brand: Cejn Industrail Corp.
- Package Quantity: 1
- Country of Origin: SE
- FOB Origin: IL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 4.50
- Package Width: 2.50
- Package Height: 2.50
- Package Weight: 0.60
Product info last updated on November 27, 2024 2:03pm UTC
Category: Hoses and Connectors
