Cejn® Euro Interchange Multi-Link Kit 1/4" Body Size x2 Safety Couplings 1/2" Female Inlet 19-902-9202
Cejn® Euro Interchange Multi-Link Kit 1/4"" Body Size x2 Safety Couplings 1/2"" Female Inlet 19-902-9202

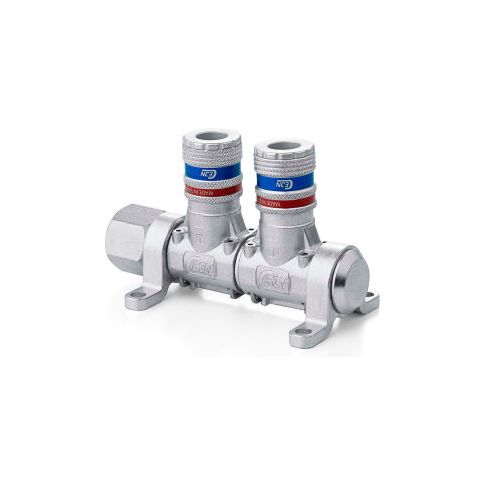

CEJN 19-902-9202 Multi-Link Eurostandard 1/4" Body Size Safety eSafe Kit 2 Out, 1/2" Female Inlet
With multiple outlets Series 320 eSafe Multi-Link offers both flexibility and high performance. Available in 1- to 5-outlet units. A small unit can be expanded with extensions to create a larger unit with up to five outlets. Separate units can easily be connected. Combine with CEJN polyurethane hose and FRL units to create a safe and flexible high performance air distribution system. eSafe complies with ISO Standard 4414 and EN 983 and it offers standard features; one-hand operated, high flow and long service life
Features:
With multiple outlets Series 320 eSafe Multi-Link offers both flexibility and high performance. Available in 1- to 5-outlet units. A small unit can be expanded with extensions to create a larger unit with up to five outlets. Separate units can easily be connected. Combine with CEJN polyurethane hose and FRL units to create a safe and flexible high performance air distribution system. eSafe complies with ISO Standard 4414 and EN 983 and it offers standard features; one-hand operated, high flow and long service life
Features:
- Compact multiple vented safety outlets
- Ready-made units, no assembly necessary
- Outlets adjustable up to 180°
Product Specifications
- BRANDCejn®
- MANUFACTURERS PART NUMBER19-902-9202
- STYLEEurostandard 1/4" Body Size Interchange
- CONNECTION TYPE1/2" Inlet
- CONSTRUCTIONZinc-Plated Steel
- TYPE--
- CFM80.8
- CONNECTION FORCE86 N
- NOMINAL FLOW DIAMETER5/16"
- MINIMUM BURST PRESSURE928
- TEMPERATURE RANGE-4°F +212°F
- CONNECTION CONFIGURATION1/2" Female Inlet
- SERIESeSafe 320
- SEAL MATERIALNBR
- MAXIMUM OPERATING PSI232
Additional Information
- UNSPSC: 27131613
- Brand: Cejn Industrail Corp.
- Package Quantity: 1
- Country of Origin: SE
- FOB Origin: IL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 8.00
- Package Width: 8.00
- Package Height: 8.00
- Package Weight: 1.25
Product info last updated on November 27, 2024 10:04pm UTC
Category: Hoses and Connectors
