Cejn® Industrial Interchange Safety Coupling 1/4" Body Size 3/8" Male NPT - Pkg Qty 10 10-310-2454
Cejn® Industrial Interchange Safety Coupling 1/4"" Body Size 3/8"" Male NPT - Pkg Qty 10 10-310-2454

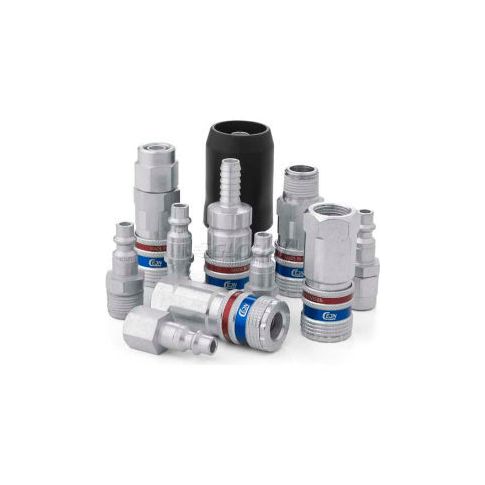

Cejn® 10-310-2454 eSafe Series 310 Safety Coupling, 3/8 Male NPT (Industrial INTCH 1/4)
eSafe Series 310 offers a wide range of easy-to-grip couplings along with Stream-Line. Male threads on the couplings feature pre-applied thread sealant. eSafe Series 310 is a vented safety coupling that is disconnected in two stages in order to vent the coupling and minimize the risk of sudden component separation. The couplings are fully automatic to ensure quick and easy handling. eSafe Series 310 complies with ISO Standard 4414 and EN 983.
eSafe Series 310 offers a wide range of easy-to-grip couplings along with Stream-Line. Male threads on the couplings feature pre-applied thread sealant. eSafe Series 310 is a vented safety coupling that is disconnected in two stages in order to vent the coupling and minimize the risk of sudden component separation. The couplings are fully automatic to ensure quick and easy handling. eSafe Series 310 complies with ISO Standard 4414 and EN 983.
Product Specifications
- BRANDCejn®
- MANUFACTURERS PART NUMBER10-310-2454
- STYLEIndustrial 1/4" Body Size Interchange
- CONNECTION TYPE3/8" Male NPT
- CONSTRUCTIONZinc Plated Steel/Brass
- TYPESafety Coupling
- CFM32.6
- PSI232
- CONNECTION FORCE84 N
- NOMINAL FLOW DIAMETER7/32"
- MINIMUM BURST PRESSURE2030
- TEMPERATURE RANGE-4°F to +212°F
- INTERCHANGEIndustrial Interchange
- CONNECTION CONFIGURATION3/8" Male NPT
- SERIESeSafe 310
- SEAL MATERIALNBR
- MAXIMUM OPERATING PSI230
Additional Information
- UNSPSC: 27131613
- Brand: Cejn Industrail Corp.
- Package Quantity: 10
- FOB Origin: IL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Length: 3.00
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.25
Product info last updated on May 28, 2024 1:50pm UTC
Category: Hoses and Connectors
