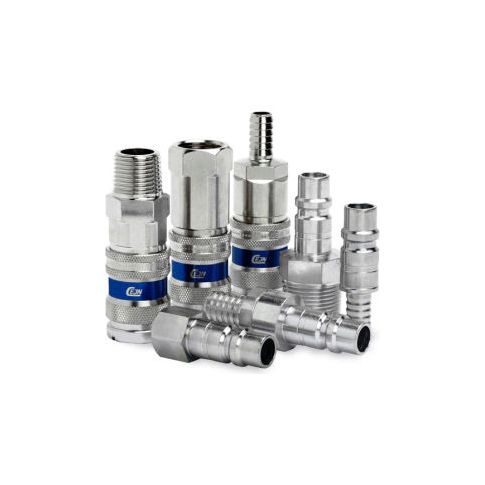

Cejn® Industrial Interchange Safety Coupling 1/2" Body Size 1/2" Female NPT 10-550-2405
Cejn® Industrial Interchange Safety Coupling 1/2" Body Size 1/2" Female NPT 10-550-2405
Series 550 Coupling - 1/2" Female NPT (Industrial Interchange 1/2")
Series 550 couplings feature an easy-to-grip design and require only a low connection force. They are smaller and more compact and generate higher flows than comparable designs. Series 550 couplings have an extremely low noise upon disconnection. The Series 550 vented safety version is disconnected in two stages in order to vent the coupling and minimize the risk of sudden component separation, which has the potential to cause operator injury. Its unique, balanced-valve design makes it extremely easy to connect, regardless of system pressure. The safety version is also ideal for multiple connection points, such as manifold applications in which low connection force is required. It complies with ISO standard 4414 and EN 983.
Series 550 couplings feature an easy-to-grip design and require only a low connection force. They are smaller and more compact and generate higher flows than comparable designs. Series 550 couplings have an extremely low noise upon disconnection. The Series 550 vented safety version is disconnected in two stages in order to vent the coupling and minimize the risk of sudden component separation, which has the potential to cause operator injury. Its unique, balanced-valve design makes it extremely easy to connect, regardless of system pressure. The safety version is also ideal for multiple connection points, such as manifold applications in which low connection force is required. It complies with ISO standard 4414 and EN 983.
- Strong And Durable
- Extremely Easy To Connect
- One-Hand Operation
Product Specifications
- BRANDCejn®
- MANUFACTURERS PART NUMBER10-550-2405
- STYLEIndustrial 1/2" Body Size Interchange
- CONNECTION TYPE1/2" Female NPT
- CONSTRUCTIONZinc Plated Steel/Brass
- CFM143
- PSI232
- CONNECTION FORCE152 N
- NOMINAL FLOW DIAMETER7/16"
- MINIMUM BURST PRESSURE2030
- TEMPERATURE RANGE-4°F to +212°F
- INTERCHANGEIndustrial Interchange
- CONNECTION CONFIGURATION1/2" Female NPT
- SEAL MATERIALNBR
- MAXIMUM OPERATING PSI232
Additional Information
- UNSPSC: 27131613
- Brand: Cejn Industrail Corp.
- Package Quantity: 1
- Country of Origin: SE
- FOB Origin: IL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Weight: 0.50
Product info last updated on November 27, 2024 10:42pm UTC
Category: Hoses and Connectors
