Cejn® ARO Interchange Nipple 1/4" Body Size 1/4" Hose Barb - Pkg Qty 10 10-300-5002
Cejn® ARO Interchange Nipple 1/4" Body Size 1/4" Hose Barb - Pkg Qty 10 10-300-5002

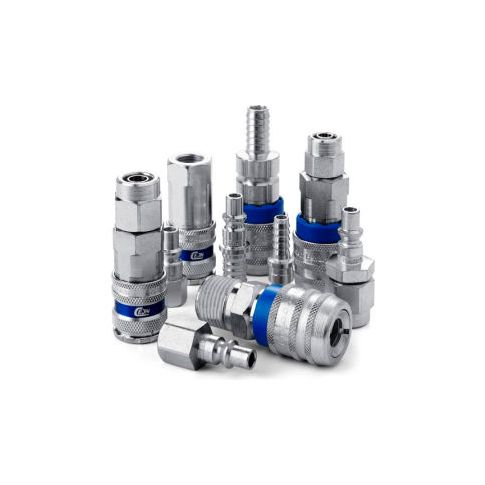

Series 300 Nipple - 1/4" Hose Barb (ARO 210 Standard)
Series 300 couplings offer high flow and require only a low connection force, which ensures a safe working environment. Male threads on the couplings and nipples feature pre-applied thread sealant. The Series 300 vented safety version is disconnected in two stages in order to vent the coupling and minimize the risk of sudden component separation, which has the potential to cause operation injury. Full automatic operation ensures easy handling. The vented safety version complies with ISO Standard 4414 and EN 983.
Series 300 couplings offer high flow and require only a low connection force, which ensures a safe working environment. Male threads on the couplings and nipples feature pre-applied thread sealant. The Series 300 vented safety version is disconnected in two stages in order to vent the coupling and minimize the risk of sudden component separation, which has the potential to cause operation injury. Full automatic operation ensures easy handling. The vented safety version complies with ISO Standard 4414 and EN 983.
- Full Automatic Operation
- Strong And Durable
- High Flow Capacity
Product Specifications
- BRANDCejn®
- MANUFACTURERS PART NUMBER10-300-5002
- CONSTRUCTIONHardened Zinc Plated Steel
- CFM37.1
- CONNECTION FORCE70.7 N
- NOMINAL FLOW DIAMETER7/32"
- MINIMUM BURST PRESSURE2030
- TEMPERATURE RANGE-4°F to +212°F
- CONNECTION CONFIGURATION1/4" Hose Barb
- MAXIMUM OPERATING PSI232
Additional Information
- UNSPSC: 27131613
- Brand: Cejn Industrail Corp.
- Package Quantity: 10
- Country of Origin: SE
- FOB Origin: IL
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: Yes
- Package Weight: 0.25
Product info last updated on November 27, 2024 10:42pm UTC
Category: Hoses and Connectors
