Hinge Mortise Cut Router Bit 1/2 MPN:801.127.11
Hinge Mortise Cut Router Bit 1/2
Guhring's Hinge Mortise Cut Router bit offers precision in cutting mortises for furniture, cabinetry or door hinges with ease in both hardwood and softwood materials. Features a cutter size of 1/2 diameter suitable for 1/2 x 3/8 hinge dimensions. Its unique design produces an accurate hinge-pocket without any adjustments while delivering cleaner and faster cuts with no burn or melt on the material edges making it ideal for furniture builders, cabinet makers and woodworkers in the Woodworking industry.
Hinge-mortise profile router bits cut a mortise (or recess) into a workpiece. They can also create dados or rabbets. These bits are used to inset hinge leaves and stair treads and to carve large, shallow recesses into a workpiece.

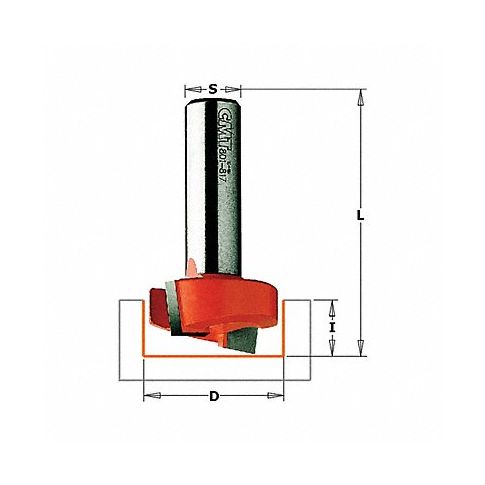

Technical Specifications
- Item Hinge Mortise Cut Profile Router Bit
- Measurement System Fractional Inch
- Cutter Dia. 1/2 in
- Length of Cut 3/4 in
- Overall Length 2 1/8 in
- Shank Dia. 1/4 in
- Shank Length 1 3/8 in
- Number of Flutes 2
- Flute Length 3/4 in
- Material - Machining Carbide Tipped
- List Number 801
- Shape Hinge Mortise
- Drilling Tool Configuration Individual
- End Mill Application Finishing
- Primary Material Application Wood
- Primary Material Application ISO Code O
Manufacturer Details
- Manufacturer: CMT
- Condensed Mfg Number: 80112711
- MPN: 801.127.11
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: IT
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Profile Router Bits
- GDS Family Name: Routers
- GDS Segment Name: Power Tools
- UNSPSC: 27112821
- UNSPSC Class ID: 28
- UNSPSC Commodity Name: Tool attachments and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Router bits
- UNSPSC Family ID: 11
- UNSPSC Family Name: Hand tools
- UNSPSC Segment ID: 27
- UNSPSC Segment Name: Tools and General Machinery
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:44am UTC
Category: Routers
