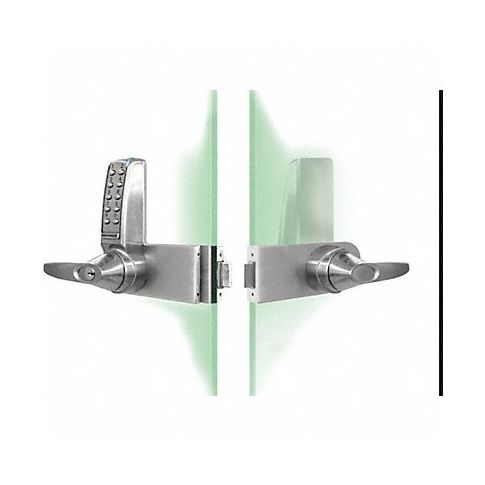

Electronic Key Lock 1-15/16 Outside W MPN:CL4000GD-RH-BS
The electronic key lock is a high-security solution designed for safes, cabinets, lockers and other storage areas to provide access control and theft prevention. Its user-friendly touchpad enables easy entry of combination codes while its high-strength mechanical locking mechanism ensures resistance against physical attacks or manipulation. Its 1-15/16 outside width accommodates standard door thicknesses and provides easy installation without any alterations, making it ideal for various commercial and residential applications requiring enhanced security measures in safes or cabinets. Additionally, its customizable features provide versatility and flexibility to store multiple codes and user profiles with varying access permissions levels, ensuring the secure storage of sensitive documents, valuables or valuable equipment. Overall, the electronic key lock is a durable, reliable, and easy-to-use security solution ideal for homes, offices, commercial businesses and other high-security locations where controlled access to sensitive information, valuables, or assets is imperative.
Technical Specifications
- Item Electronic Key Lock
- Function Classroom or Store Room with Key Override
- Access Method Keypad
- Mounting Style Vertical
- Lock Material Zinc Alloy
- Finish Brushed Steel
- Series CL4000
- Handle Type Lever
- Door Thickness 5/16 in to 10/16 in
- Key Override Options Standard SC1 Keyway
- Hand Right
- Network Interface None
- Outside Height 6 5/8 in
- Outside Width 1 15/16 in
- Inside Height 6 5/8 in
- Inside Width 1 15/16 in
- Latch Length 2-3/4 in
- Latch Front Size 1-1/8 in x 2-1/4 in
- Backset 2-3/4 in
- Keypad Material Metal
- Number of Keys 10
- Timed Entry Allowance 5 sec
- Power Source (4) N Batteries
- Battery Life 140,000 Cycles
- Event Audit Trail No
- Max. User Codes 80
- Max. Proximity Range At Lock
- Fire Rating No
- ADA Compliant Yes
- Grade 2
- NEMA Rating Weather resistance per comprehensive ANSI A156.13 and A156.25 (Rain, dust, temperature, humidity, salt spray)
- IP Rating Not Rated
- Standards ANSI/BHMA
- Weather Resistant Yes
- For Use With Interior Glass Door
- Includes Mounting Hardware
- Electrical/Mechanical Electrical
Manufacturer Details
- Manufacturer: Codelocks
- Condensed Mfg Number: CL4000GDRHBS
- MPN: CL4000GD-RH-BS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8301406030
- GDS Category Name: Electronic Keyless Access Control Locks
- GDS Family Name: Keyless Access Locks
- GDS Segment Name: Hardware
- UNSPSC: 46171503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Locks and security hardware and accessories
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Lock sets
- UNSPSC Family ID: 17
- UNSPSC Family Name: Security surveillance and detection
- UNSPSC Segment ID: 46
- UNSPSC Segment Name: Defense and Law Enforcement and Security and Safety Equipment and Supplies
Shipping Details
- Not For Sale In: HI AK PR
