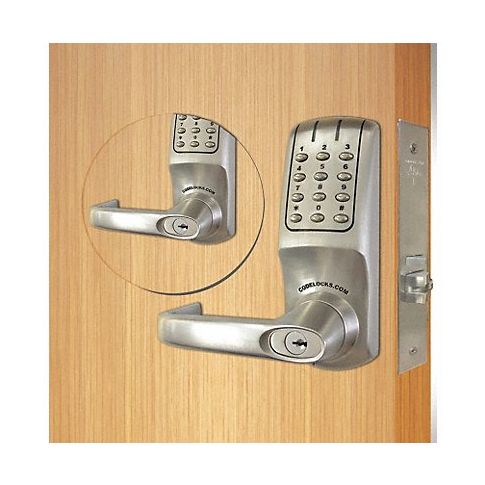

Electronic Key Lock 7-3/4 Outside H MPN:CL5250BB-BS
This durable electronic key lock features a sophisticated anti-picking technology offering superior protection for valuables such as cabinets, desks or vaults. With the outside handle measuring 7-3/4 inches in length it provides an easy access to secured locations preventing unwarranted intrusions thus protecting assets without compromise. The intuitive programming enables keyless operation with audible feedback on lock/unlock functions, low battery indicators as well as reset modes ensuring user convenience at its best. The stylish design suits various applications while remaining portable lightweight making it easy to install in numerous situations such as homes, office spaces or warehouses. Being weather-resistant this lock adds value by safeguarding items without the worry of wear and tear from harsh elements thus perfecting its use even more suitable for busy work environments which require swift access without interruptions during daytime operations. With multiple unlocking methods such as manual key override options if batteries run low, the electronic key lock assures flexibility to accommodate different user requirements hence delivering reliability and quality service in securing possessions with no limitations or drawbacks expected over time.
Technical Specifications
- Item Electronic Key Lock
- Function Classroom or Store Room with Key Override
- Access Method Keypad
- Mounting Style Vertical
- Lock Material Zinc Alloy
- Finish Brushed Steel
- Series CL5000
- Handle Type Lever
- Door Thickness 1-3/8 in to 2-1/2 in
- Key Override Options Standard SC1 Keyway
- Hand Right or Left
- Network Interface None
- Outside Height 7 3/4 in
- Outside Width 2 3/4 in
- Inside Height 7 3/4 in
- Inside Width 2 3/4 in
- Latch Length 2-3/4 in
- Latch Front Size 1-1/8 in x 2-1/4 in
- Backset 2-3/4 in
- Keypad Material Metal
- Number of Keys 12
- Timed Entry Allowance 5 sec
- Power Source (4) AA Batteries
- Battery Life 200,000 Cycles
- Event Audit Trail No
- Max. User Codes 80
- Max. Proximity Range At Lock
- Fire Rating No
- ADA Compliant Yes
- Grade 2
- NEMA Rating Weather resistance per comprehensive ANSI A156.13 and A156.25 (Rain, dust, temperature, humidity, salt spray)
- IP Rating Not Rated
- Standards ANSI/BHMA
- Weather Resistant Yes
- For Use With Interior/Exterior Door
- Includes Mounting Hardware, Tubular Mortise Latch with (2) Keypads Code In/Out
- Electrical/Mechanical Electrical
Manufacturer Details
- Manufacturer: Codelocks
- Condensed Mfg Number: CL5250BBBS
- MPN: CL5250BB-BS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8301406030
- GDS Category Name: Electronic Keyless Access Control Locks
- GDS Family Name: Keyless Access Locks
- GDS Segment Name: Hardware
- UNSPSC: 46171503
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Locks and security hardware and accessories
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Lock sets
- UNSPSC Family ID: 17
- UNSPSC Family Name: Security surveillance and detection
- UNSPSC Segment ID: 46
- UNSPSC Segment Name: Defense and Law Enforcement and Security and Safety Equipment and Supplies
Shipping Details
- Not For Sale In: HI AK PR
