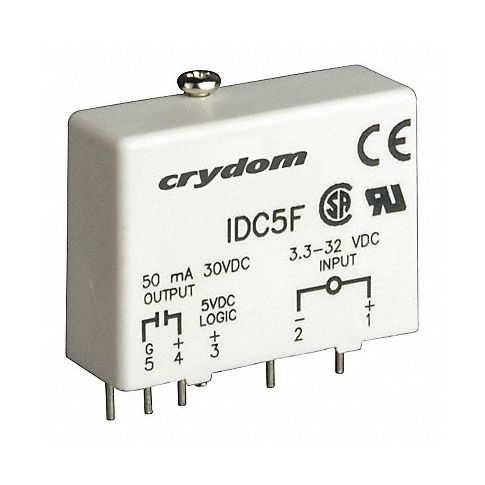

In Module In 4-32VAC/DC Out 3-30VDC 50mA MPN:IDC5
Free Shipping
In Stock
The In Module offers multiple interfaces in one package enabling easy and economical connection to diverse sensor and actuator applications. Providing an input voltage of 4-32VDC, the module's wide range ensures compatibility with a wide range of controllers or battery systems for various applications. Its AC output enables powering small DC loads like solenoids directly eliminating the need for relays. A single module houses both positive and negative outputs offering simple control solutions for a multitude of sensors requiring independent triggers like limit switches, proximity sensors or PIR sensors. This cost-effective device offers extensive possibilities in many industrial or commercial settings that require versatile inputs and outputs such as security systems, factory automation, alarms or building management systems.
Technical Specifications
- Item - Relay Input Module
- Input or Control Voltage 4 to 32V AC/DC
- Output or Controlled Voltage Range 3 to 30V DC
- Max. Output Amps - Module 50 mA
- Case Color White
- Type of Output Solid State
- Mounting - Relay Printed Circuit Board
- Contact Form - Relay SPST-NO
- Number of Pins - Relay 5
- Body Height - Relay 1.25 in
- Body Width - Relay 1.7 in
- Body Depth - Relay 0.6 in
- Overall Height - Relay 1.49 in
- Special Features Open Collector Output
- Standards CE, CSA, UL
Manufacturer Details
- Manufacturer: Crydom
- Condensed Mfg Number: IDC5
- MPN: IDC5
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: Y
- CA Prop 65 Warning Msg Scenario: 7
Classification Details
- Harmonization Code: 8536490080
- GDS Category Name: Input/Output Relay Modules
- GDS Family Name: Relays
- GDS Segment Name: Electrical
- UNSPSC: 39121552
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 52
- UNSPSC Commodity Name: Electrical control modules
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
