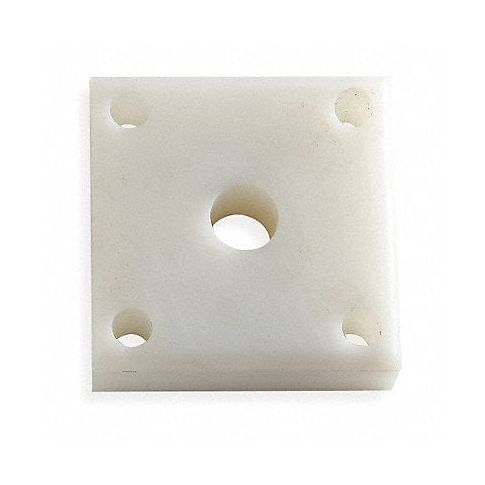

4 Bolt Flange Bearing Sleeve 1in Bore MPN:1F554

Technical Specifications

• Item 4-Bolt Flange Bearing
• Mounted Bearing Item 4-Bolt Flange Bearing
• Bearing Insert Type Sleeve
• Bore Dia. 1 in
• Shaft Locking Type None
• Bearing Housing Material Type UHMW-PE
• Bearing Insert Material UHMW-PE
• Bolt Hole Center-to-Center 2 3/4 in
• Series F4UH-UH
• Bolt Size 7/16 in
• Overall Height 1 1/4 in
• Overall Width 3 3/4 in
• Overall Length 3 3/4 in
• Dynamic Load Capacity Max. PV 3000 lb
• Temp. Range -60 Degrees to 180 Degrees F
• Finish None
• Standards FDA Approved, USDA Approved
• Includes Solid Self-Lubricating Bearing
• Dimension B 3 3/4 in
• Dimension C 2 3/4 in
• Dimension E 2 3/4 in
• Dimension F 1 1/4 in
• Dimension J 7/16 in
• Dimension L 1 1/4 in

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 1F554
• MPN: 1F554

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8483308090
• GDS Category Name: Flange Mount Bearings
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171501
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Flanged bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
