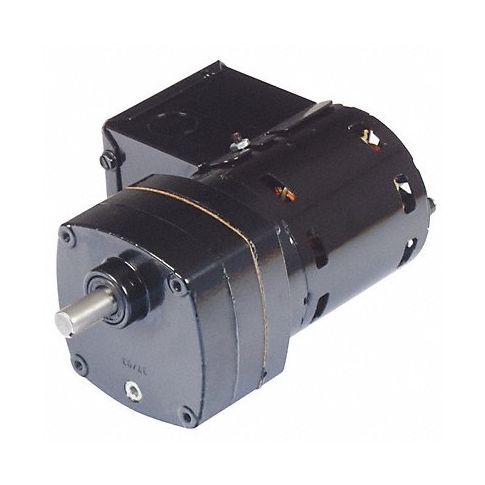

AC Gearmotor 63 rpm TENV 230V MPN:1L520

Technical Specifications

• Item AC Gearmotor
• Gearmotor Type AC Gearmotor
• Gearmotor Phase 1
• Max. Torque 46.0 in-lb
• Gearmotor Shaft Type Single
• Gearmotor Shaft Orientation Parallel
• Gearmotor Rotation CW/CCW
• Nameplate RPM 63 RPM
• Gearmotor Enclosure Totally Enclosed Nonventilated
• Gearmotor Mounting Position All Angle
• Gearmotor Brake Type None
• Length Less Shaft 8 in
• Hz 60/50 Hz
• Overhung Load 90 lb
• Input HP 1/20 hp
• Gear Ratio 25:1
• Full Load Amps 0.3
• Thermal Protection None
• Max. Ambient Temp. 40 Degrees C
• Motor Type PSC
• Capacitor Required Included
• Shaft Dia. (Dimension U) 1/2"
• Shaft Length (Dimension V) 1"
• Bearings Heavy Duty Needle on Case, Ball on Motor
• Lubrication Permanent Heavy Duty Gear Oil
• Gears 1st Stage Steel, Helical, Subsequent Stages Steel or Heat Treated Powdered Metal Spur
• Gear Material Steel or Heat Treated Powdered Metal
• Gear Type Helical First Stage/Spur
• Seals Spring Loaded Lip Type on Input and Output Shaft
• Standards UL Recognized, C-UL Recognized, CE Certified

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 1L520
• MPN: 1L520

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8501314000
• GDS Category Name: AC Gearmotors
• GDS Family Name: Gearmotors
• GDS Segment Name: Power Transmission
• UNSPSC: 26101602
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Motors
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Alternating current AC motors
• UNSPSC Family ID: 10
• UNSPSC Family Name: Power sources
• UNSPSC Segment ID: 26
• UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories

Shipping Details

• Not For Sale In: HI AK PR
