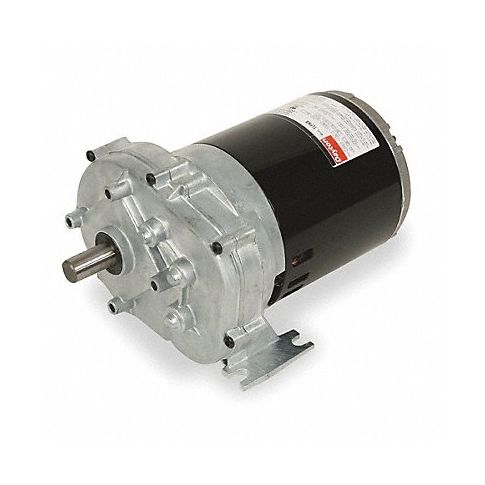

AC Gearmotor 60 rpm ODP 115V MPN:1LPP2

115VAC Split-Phase Parallel-Shaft Gearmotors
• Enclosure: open dripproof Gearcase: die-cast zinc Lubrication: grease filled Gears: cut steel and phenolic Bearings: porous bronze sleeve on case; ball on motor ball on case and motor Mounting: all-position 60 Hz Rotation: reversible Thermal protection: none Ambient: 40°C UL and C-UL Recognized

Technical Specifications

• Item AC Gearmotor
• Gearmotor Type AC Gearmotor
• Gearmotor Voltage 115V AC
• Gearmotor Phase 1
• Max. Torque 200.0 in-lb
• Gearmotor Shaft Type Single
• Gearmotor Shaft Orientation Parallel
• Gearmotor Rotation CW/CCW
• Nameplate RPM 60 RPM
• Gearmotor Enclosure Open Dripproof
• Gearmotor Mounting Position All Angle
• Gearmotor Brake Type None
• Length Less Shaft 9 5/8 in
• Hz 60 Hz
• Reversible Shaft Output No
• Overhung Load 190 lb
• Input HP 1/4 hp
• Gear Ratio 29:1
• Full Load Amps 3.9
• Insulation Class B
• Thermal Protection None
• Max. Ambient Temp. 40 Degrees C
• Motor Type Split-Phase
• Shaft Dia. (Dimension U) 3/4 in
• Shaft Length (Dimension V) 1.5 in_x000D_
• Keyway Size Type #605 Woodruff Key
• Bearings Porous Bronze Sleeve on Case, Ball on Motor
• Lubrication Grease Filled
• Finish Unpainted
• Housing Die Cast Zinc
• Gear Case Material Die Cast Zinc
• Gears Phenolic/Steel
• Gear Material Steel/Phenolic
• Seals Lip Type on Input and Output Shaft
• Standards UL Recognized, C-UL Recognized

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 1LPP2
• MPN: 1LPP2

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8501404020
• GDS Category Name: AC Gearmotors
• GDS Family Name: Gearmotors
• GDS Segment Name: Power Transmission
• UNSPSC: 26101603
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Motors
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Direct current DC motors
• UNSPSC Family ID: 10
• UNSPSC Family Name: Power sources
• UNSPSC Segment ID: 26
• UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories

Shipping Details

• Not For Sale In: HI AK PR
