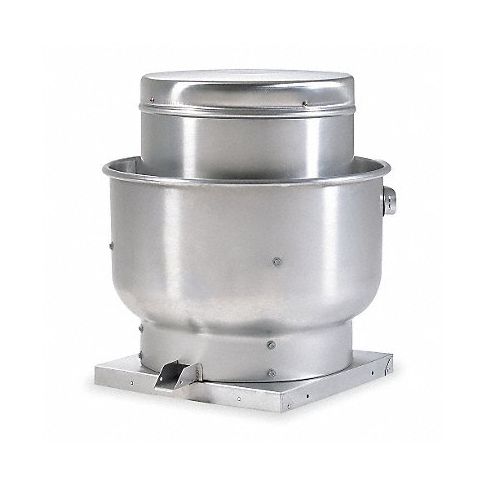

Square Alu 22 L 22 W Roof Exhst Fan MPN:2RB65
Introducing our powerful Square Alu 22 L 22 W Roof Exhaust Fan - perfect for your HVAC and Refrigeration needs! Designed specifically for restaurants, schools, commercial and industrial applications, this centrifugal belt-drive upblast ventilator is ideal for exhausting contaminated air from kitchen range hoods and removing it up and away from the roof. Equipped with a high-pressure design that makes it suitable for use in applications with high static pressure, this fan is perfect for long vertical duct runs or complex duct runs with several elbows. Its rolled aluminum windband and fully welded base create a virtually leakproof seal to ensure your indoor environment remains clean and hygienic. The internal steel support braces and fully rolled windband increase the rigidity of the ventilator for maximum stability, making transportation and installation easier. Additionally, our motor compartment is isolated from the contaminated air stream and cooled by outside air that is pulled in through an oversized breather tube by the spinning action of the wheel, resulting in low-noise operation and reduced maintenance needs. Trust the Square Alu 22 L 22 W Roof Exhaust Fan for all your ventilation requirements!
Top product features:
- Upblast Ventilator
- High-Pressure Design
- Fully Rolled Windband
Top product applications:
- Commercial kitchens and cooking areas in restaurants and cafeterias to exhaust fumes and smoke away from the room
- Industrial facilities that need to ventilate hazardous or high heat conditions such as welding shops, foundries, and print shops
- Schools, colleges and other educational institutions to keep classroom and corridors fresh, clean, and well-ventilated.
Technical Specifications
- Item Upblast Ventilator
- Drive Package With Motor Included No
- Drive Type - Roof Ventilators Belt Drive
- Duty Rating - Roof Ventilators Standard
- Base Size - Roof Ventilators 22 in x 22 in
- Number of Speeds 1
- Mounting Location - Roof Ventilators Roof
- CFM Range 761 to 1014 @ 0.5 in SP
- Wheel Dia. 11 1/4 in
- Item - Roof Ventilators Upblast Ventilator
- RPM Range 2045 to 2580
- Base Height 1 3/4 in
- Motor HP Range 1/4 to 1/2
- Overall Height 25 1/8 in
- Overall Dia. 24 7/8 in
- Shaft Dia. Sheave End 3/4 in
- Shaft Dia. Wheel End 3/4 in
- Max. Inlet Temp. 300 Degrees
- Housing Material Spun Aluminum
- Wheel Material Aluminum
- Wheel Type Backward Inclined Centrifugal
- Includes NEMA 1 Junction Box
- Standards UL/cUL 762, AMCA Sound, Air
- Dimension A 22 in
- Dimension B 24 7/8 in
- Dimension C 25 1/8 in
- Dimension D 17 3/8 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 2RB65
- MPN: 2RB65
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414596560
- GDS Category Name: Centrifugal Upblast Roof Exhaust Fans without Moto
- GDS Family Name: Roof Ventilators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101502
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Ventilation
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air exhausters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 8:28pm UTC Category: Roof Ventilators
