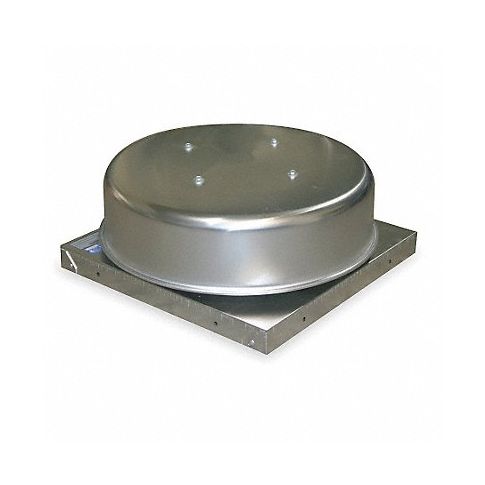

Gravity Roof Vent 19 In Sq Base 312 CFM MPN:2RB69
Gravity Roof Vent 19 In Sq Base 312 CFM
Introducing the DAYTON Low-Profile Gravity Roof Ventilator the perfect solution for exhaust or supply applications on natural gravity or positive pressure systems. Constructed from rigid aluminum and designed to be corrosion-resistant, this vent is built to last. The low profile design makes it ideal for use in a variety of roofing environments where space may be limited. Equipped with an integrated bird screen to keep out unwanted pests, the Gravity Roof Ventilator from DAYTON also features a built-in curb cap with prepunched holes for easy attachment to roof curbs. Its versatile applications make it suitable for use in both HVAC and refrigeration systems, making it an essential component in any installation.
Top product features:
- Low-profile design for limited space applications
- Rigid aluminum construction for durability and strength
- Built-in bird screen to protect against damage
Top product applications:
- HVAC systems to provide natural ventilation
- Refrigeration systems for air circulation and cooling
- Industrial facilities as exhaust or supply vents
The DAYTON® low-profile gravity roof ventilator is designed for exhaust or supply applications on natural gravity or positive pressure systems. Low-profile hood has a rigid aluminum, corrosion-resistant construction. Built-in curb cap with prepunched holes for easy attachment to roof curb. Integral bird screen.
Technical Specifications
- Item Gravity Ventilator
- Base Size - Roof Ventilators 19 in x 19 in
- Style - Roof Ventilators Low Profile
- Item - Roof Ventilators Gravity Ventilator
- CFM/Throat Velocity @ 0.050-In. SP Gravity Intake 312/548
- CFM/Throat Velocity @ 0.050-In. SP Gravity Relief 370/650
- CFM/Throat Velocity @ 0.100-In. SP Gravity Intake 442/775
- CFM/Throat Velocity @ 0.100-In. SP Gravity Relief 524/919
- CFM/Throat Velocity @ 0.125-In. SP Gravity Intake 494/866
- CFM/Throat Velocity @ 0.125-In. SP Gravity Relief 586/1027
- CFM/Throat Velocity @ 0.200-In. SP Gravity Intake 624/1096
- CFM/Throat Velocity @ 0.200-In. SP Gravity Relief 741/1299
- CFM/Throat Velocity @ 0.250-In. SP Gravity Intake 698/1225
- CFM/Throat Velocity @ 0.250-In. SP Gravity Relief 828/1453
- Overall Height (In.) 9 in
- Depth (In.) 20 1/2 in
- Width (In.) 20 1/2 in
- Max. Intake CFM/Throat Velocity 1032/1801
- Construction Material Spun Aluminum
- Recommended 8 In. Fixed Curb Item No. 4HX38
- Recommended 12 In. Fixed Curb Item No. 2RB75
- Dimension A 19 in
- Dimension B 20 1/2 in
- Dimension C 7 1/4 in
- Dimension D 2 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 2RB69
- MPN: 2RB69
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7616995190
- GDS Category Name: Gravity Exhaust Supply Ventilators
- GDS Family Name: Roof Ventilators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101502
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Ventilation
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air exhausters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 8:28pm UTC
Category: Roof Ventilators
