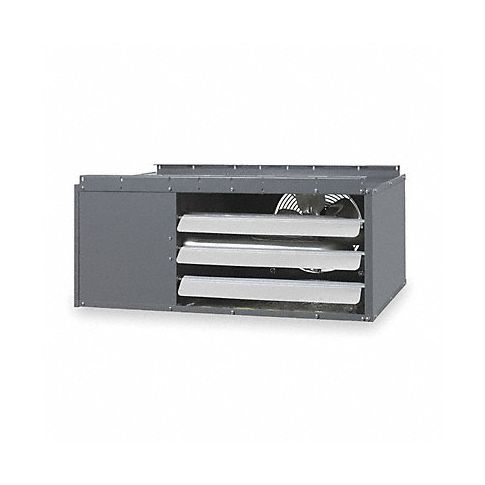

Low-Profle Gas Unt Htr NG LP 370cfm MPN:2RYU7A
Low-Profle Gas Unt Htr NG LP 370cfm
Dayton's low-profile gas unit heater is an excellent choice for heating indoor environments with limited space. Its compact design suspends from walls or ceilings, freeing up floor space while still providing ample warmth. The heater operates on both natural gas and propane, making it versatile and convenient for various settings. With a heating capacity of 30,000 BtuH and output of 24,900 BtuH, this unit delivers efficient heating without wasting energy. Its field-convertible combustion type ensures flexibility in installation and use. Ideal for workshops, warehouses, and garages, this low-profile gas unit heater provides reliable, economical heating solutions for a wide range of applications.
Top product features:
- Compact Design: The low-profile design allows for use in tight spaces and areas with limited headroom.
- Fuel Versatility: Operates on both natural gas and propane for added convenience and flexibility.
- Field Convertible Combustion Type: Allows for easy and convenient installation and use.
Top product applications:
- Heating small workshops, warehouses or garages where space is limited.
- Supplemental heating in large industrial buildings where central heating may not be sufficient.
- Keeping outdoor equipment, such as machinery or vehicles, warm during cold weather conditions.
Low-profile heaters are more compact than standard-profile heaters, so they're ideal for tight spaces or areas with little headroom. These heaters suspend from walls or ceilings to heat environments with limited floorspace.
Technical Specifications
- Product Type Low-Profile Unit Heater
- Fuel Type Natural Gas, Propane
- Combustion Type Field Convertible
- Heating Capacity Input 30,000 BtuH
- Heating Capacity Output 24,900 BtuH
- Fan Type Propeller
- Thermal Efficiency Rating 83%
- Flue Diameter 4 in
- Overall Height 12 3/8 in
- Overall Width 30 in
- Overall Depth 25 7/8 in
- Air Flow 370 cfm
- Air Flow Direction Horizontal
- Air Temperature Rise 60 Degrees F
- Burner Air Inlet Size 4 in
- Drive Type Direct
- Fan Diameter 10 in
- Frequency 60 Hz
- Gas Connection Size 1/2 in
- Gas Connection Type NPT, Male
- Heat Exchanger Gauge 20 ga
- Heat Exchanger Material Aluminized Steel
- Heat Output 24,900 BtuH
- Heater Voltage 115 V AC
- Heating Method Fan Forced
- Ignition Type Direct Spark
- Indoor Air Discharge Height 12 3/8 in
- Indoor Air Discharge Width 30 in
- Maximum Amperage 3.2 A
- Motor Speed 1,650 RPM
- Motor Type SP
- Mounting Height 8 ft to 10 ft
- Mounting Hole Diameter 3/4 in
- Mounting Location Ceiling
- Mounting Type Suspended
- Phase 1
- Profile Type Low
- Vent Type Power
- Thermostat Included No
- Features Power Venting Allows Horizontal Venting Through Side Walls or Vertical Venting, Tubular Heat Exchanger And Single Burner Design with Gas Conversion Kit Included
- Includes LP Gas Conversion Kit
- Manufacturers Warranty Length 10 yr on Heat Exchanger, Burners, And Flue Collector. All Other Parts are 1 yr
- Standards ETL, ETLc Certified
