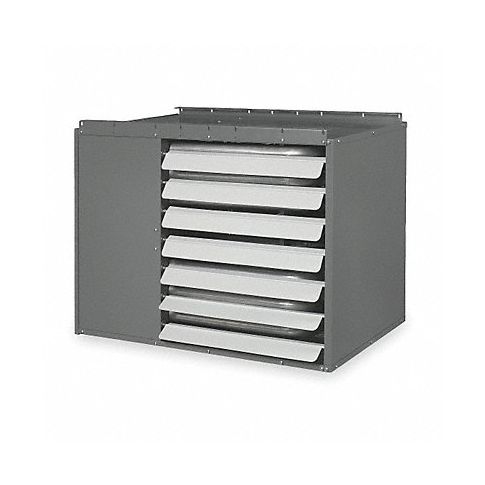

Low-Profle Gas Unt Htr NG LP 1300cfm MPN:2RYV3A

Low-profile heaters are more compact than standard-profile heaters, so they're ideal for tight spaces or areas with little headroom. These heaters suspend from walls or ceilings to heat environments with limited floorspace.

Technical Specifications

• Product Type Low-Profile Unit Heater
• Fuel Type Natural Gas, Propane
• Combustion Type Field Convertible
• Heating Capacity Input 105,000 BtuH
• Heating Capacity Output 86,100 BtuH
• Fan Type Propeller
• Thermal Efficiency Rating 82%
• Flue Diameter 5 in
• Overall Height 22 5/8 in
• Overall Width 30 in
• Overall Depth 26 3/8 in
• Air Flow 1,300 cfm
• Air Flow Direction Horizontal
• Air Temperature Rise 60 Degrees F
• Burner Air Inlet Size 5 in
• Drive Type Direct
• Fan Diameter 16 in
• Frequency 60 Hz
• Gas Connection Size 1/2 in
• Gas Connection Type NPT, Male
• Heat Exchanger Gauge 20 ga
• Heat Exchanger Material Aluminized Steel
• Heat Output 86,100 BtuH
• Heater Voltage 115 V AC
• Heating Method Fan Forced
• Ignition Type Direct Spark
• Indoor Air Discharge Height 22 5/8 in
• Indoor Air Discharge Width 30 in
• Maximum Amperage 6.4 A
• Motor Speed 1,050 RPM
• Motor Type SP
• Mounting Height 8 ft to 12 ft
• Mounting Hole Diameter 3/4 in
• Mounting Location Ceiling
• Mounting Type Suspended
• Phase 1
• Profile Type Low
• Vent Type Power
• Thermostat Included No
• Features Power Venting Allows Horizontal Venting Through Side Walls or Vertical Venting, Tubular Heat Exchanger And Single Burner Design with Gas Conversion Kit Included
• Includes LP Gas Conversion Kit
• Manufacturers Warranty Length 10 yr on Heat Exchanger, Burners, And Flue Collector. All Other Parts are 1 yr
• Standards ETL, ETLc Certified

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 2RYV3A
• MPN: 2RYV3A

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 7322900015
• GDS Category Name: Gas Wall and Ceiling Unit Heaters
• GDS Family Name: Gas Heaters and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101806
• UNSPSC Class ID: 18
• UNSPSC Commodity Name: Heating equipment and parts and accessories
• UNSPSC Commodity ID: 06
• UNSPSC Commodity Name: Heat pumps
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
