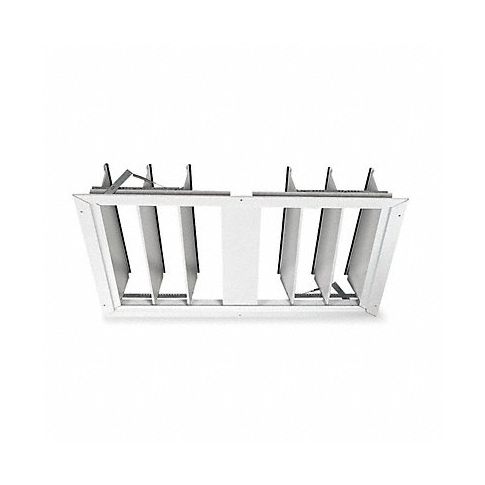

Fan Shutter 30 In White Painted Aluminum MPN:3C511
Fan Shutter 30 In White Painted Aluminum
Introducing the Dayton Whole House Fan Economy Ceiling Truss Shutter! This high-quality shutter is designed to provide efficient exhaust in residential ceilings for whole house fans. Made with an extruded aluminum frame and G-90 galvanized tie rods, it ensures durability and reliability. With a size of 32 x 32 inches, it's the perfect fit for most ceiling fans. The felt-edged louvers provide superior ventilation and energy efficiency, helping to reduce hot spots in your home. Installing this shutter is a breeze with its easy-to-use tie rods and no-framing-needed design. Upgrade your home's air quality and comfort today with the Dayton Whole House Fan Economy Ceiling Truss Shutter!
Top product features:
- Extruded aluminum frame
- G-90 galvanized tie rods
- Felt-edged louvers
Top product applications:
- Ventilation in residential ceilings for whole house fans
- Providing uniform opening when fan is operating
- Horizontal-mount exhaust installation in residential ceilings
The DAYTON® ceiling truss shutter is recommended for horizontal-mount exhaust in residential ceilings for whole house fans. Truss shutter installs without framing or cutting the ceiling joist. Tie rods at each end side of shutter assure uniform opening when fan is operating. White extruded aluminum frame with 1-1/2" flange and 3/16"-dia. mounting holes. White louvers with felted edges.
Technical Specifications
- Item Whole House Fan Economy Ceiling Truss Shutter / Ceiling Shutter
- Fits Fan Dia. 30 in
- Shutter Overall Size 32 in x 32 in
- Shutter Construction Material Extruded Aluminum Frame and G-90 Galvanized Tie Rods
- Shutter Opening Required 30 in x 30 in
- Shutter Free Area 4.652 sq ft
- Shutter Mounting Position Horizontal
- Shutter Mounting Location Ceiling
- Shutter Item Whole House Fan Economy Ceiling Truss Shutter
- Length 32 in
- Width 32 in
- Frame Depth 1 3/8 in
- Open Depth 5 in
- Flange Width 1 1/2 in
- Mounting Hole Size Prepunched
- Max. Velocity 1500 FPM
- Blade Material White Painted Aluminum
- For Use With 30 in Whole House Fans
- Number of Panels 1
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3C511
- MPN: 3C511
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7610900080
- GDS Category Name: Shutters
- GDS Family Name: Shutters Dampers and Louvers
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101504
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Ventilation
- UNSPSC Commodity ID: 04
- UNSPSC Commodity Name: Ventilation dampers
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B01N43YRUJ, B000TK9N4A, B07HLXQSDC
Product info last updated on April 4, 2024 3:44am UTC Category: Shutters Dampers and Louvers
