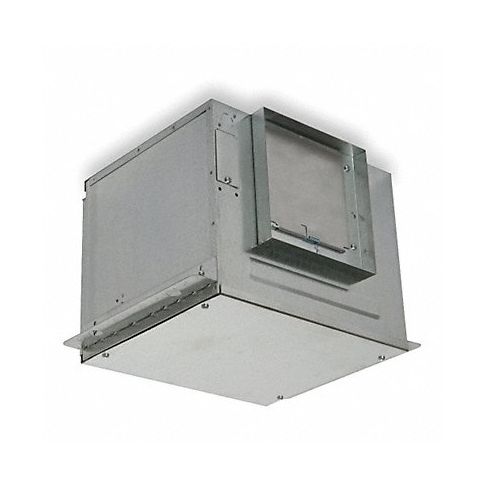

Steel 14 L 11.25 H 11.9 W Exhaust Fan MPN:3DPF2

Large insulated fan provides quiet, multiple-area commercial, institutional, or industrial ventilation. Features rotating exhaust vents, thermally protected open dripproof motors, and polypropylene wheel. All include mounting brackets, electrical knockouts, disconnect, junction box, and fan access panel.

Technical Specifications

• Item In-Line Ventilator
• Singlewide / Doublewide Singlewide
• Insulated Yes
• CFM @ 0.000-In. SP 412
• CFM @ 0.100-In. SP 400
• CFM @ 0.125-In. SP 397
• CFM @ 0.200-In. SP 390
• CFM @ 0.250-In. SP 382
• CFM @ 0.375-In. SP 363
• CFM @ 0.500-In. SP 339
• CFM @ 0.625-In. SP 324
• CFM @ 0.750-In. SP 309
• Sones @ 0.000-In. SP @ 5 Ft. 2.1
• Sones @ 0.100-In. SP @ 5 Ft. 2.0
• Sones @ 0.125-In. SP @ 5 Ft. 2.0
• Sones @ 0.250-In. SP @ 5 Ft. 2.4
• Voltage 115V AC
• Hz 60
• Phase 1
• Full Load Amps 1.33
• Number of Speeds 1
• Watts 144 W
• Motor RPM 1350
• Motor Type Permanent Split Capacitor
• Motor Enclosure Open Dripproof
• Motor Insulation Class B
• Max. Inlet Temp. 104 Degrees F
• Housing Height 11 1/4 in
• Housing Width 11 7/8 in
• Housing Length 14 in
• Inlet Height 10 in
• Inlet Width 12 7/8 in
• Discharge Height 8 in
• Discharge Width 8 in
• Mounting Position Horizontal or Vertical
• Housing Material Galvanized Steel
• Wheel Material Polypropylene
• Speed Control 48C172
• Standards UL/cUL 507, AMCA Air, Sound
• For Use With General Ventilation Applications
• Includes Backdraft Damper, Hardware and Mounting Brackets
• Recommended Accessories 6WZP3, 48C172

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 3DPF2
• MPN: 3DPF2

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414596560
• GDS Category Name: In-Line Cabinet Fans
• GDS Family Name: Duct Fans and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101502
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Ventilation
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Air exhausters
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: NJ HI AK PR
