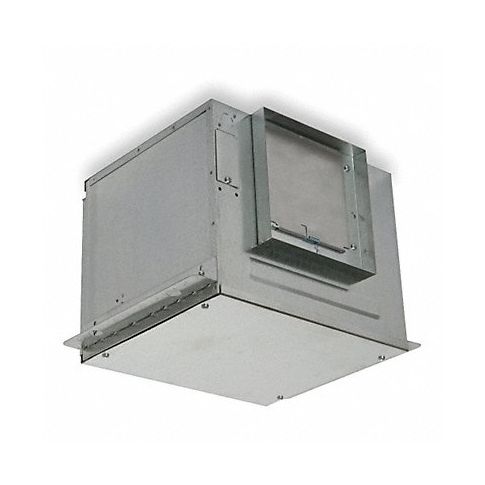

Steel 18 L 14.5 H 14.4 W Exhaust Fan MPN:3DPF3
Steel 18 L 14.5 H 14.4 W Exhaust Fan
Upgrade your identification tasks with Label Maker Labels' fluorescent yellow paper labels! This versatile option stands out while avoiding confusion during labeling - perfect for manufacturing or warehouses dealing with heavy-duty tasks daily. Its durability ensures lasting quality even on tough surfaces, making it ideal for various uses within your industry. Get seamless identification now choose Label Maker Labels today!
Large insulated fan provides quiet, multiple-area commercial, institutional, or industrial ventilation. Features rotating exhaust vents, thermally protected open dripproof motors, and polypropylene wheel. All include mounting brackets, electrical knockouts, disconnect, junction box, and fan access panel.
Technical Specifications
- Item In-Line Ventilator
- Singlewide / Doublewide Singlewide
- Insulated Yes
- CFM @ 0.000-In. SP 545
- CFM @ 0.100-In. SP 514
- CFM @ 0.125-In. SP 506
- CFM @ 0.200-In. SP 483
- CFM @ 0.250-In. SP 464
- CFM @ 0.375-In. SP 405
- CFM @ 0.500-In. SP 324
- Sones @ 0.000-In. SP @ 5 Ft. 2.3
- Sones @ 0.100-In. SP @ 5 Ft. 2.1
- Sones @ 0.125-In. SP @ 5 Ft. 2.1
- Sones @ 0.250-In. SP @ 5 Ft. 2.0
- Voltage 115V AC
- Hz 60
- Phase 1
- Full Load Amps 3.11
- Number of Speeds 1
- Watts 217 W
- Motor RPM 1070
- Motor Type Shaded Pole
- Motor Enclosure Open Dripproof
- Motor Insulation Class B
- Max. Inlet Temp. 104 Degrees F
- Housing Height 14 1/2 in
- Housing Width 14 3/8 in
- Housing Length 18 in
- Inlet Height 13 1/4 in
- Inlet Width 16 7/8 in
- Discharge Height 8 in
- Discharge Width 8 in
- Mounting Position Horizontal or Vertical
- Housing Material Galvanized Steel
- Wheel Material Polypropylene
- Speed Control 48C172
- Standards UL/cUL 507, AMCA Air, Sound
- For Use With General Ventilation Applications
- Includes Backdraft Damper, Hardware and Mounting Brackets
- Recommended Accessories 6WZP3, 48C172
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 3DPF3
- MPN: 3DPF3
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414596560
- GDS Category Name: In-Line Cabinet Fans
- GDS Family Name: Duct Fans and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101502
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Ventilation
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air exhausters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: NJ HI AK PR
Product info last updated on April 4, 2024 3:44am UTC
Category: Duct Fans and Accessories
