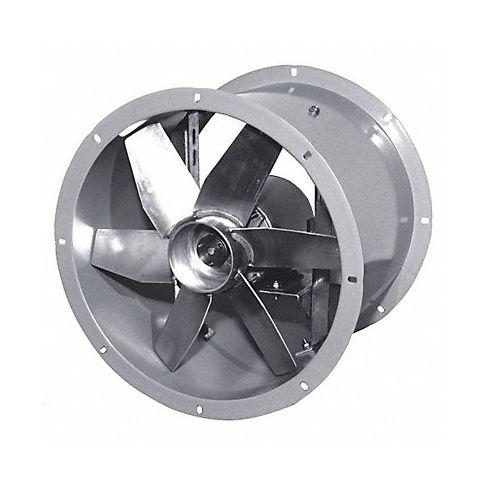

Steel 21 Dia 16 L 21 H Tubeaxial Fan MPN:166003A

Direct-drive tubeaxial fan has precision-balanced aluminum propellers that efficiently move air in medium-length ductwork and operates in any position. The rugged steel housing has a baked enamel finish. Not for use in hazardous locations. Ships assembled. Must be used with 2-speed control No. 1DGZ9.

Technical Specifications

• Item Tubeaxial Fan
• Voltage 115
• Phase 1
• Number of Speeds 2
• Blade Dia. 18 in
• CFM @ 0.000-In. SP 3938/2610
• CFM @ 0.125-In. SP 3724/2299
• CFM @ 0.250-In. SP 3521/1807
• CFM @ 0.375-In. SP 3323
• CFM @ 0.500-In. SP 3,058 cfm
• Sones @ 0.250-In. SP @ 5 Ft. 25/20
• Full Load Amps 6.7/4.6
• Motor HP 1/2 hp
• Max. BHP 0.52/0.14
• Motor RPM 1750/1160
• Hz 60
• Max. Inlet Temp. 104 Degrees F
• Max. Ambient Temp. 104 Degrees F
• Motor Type Capacitor Start
• Motor Enclosure Totally Enclosed Air Over
• Fan RPM 1750/1160
• Bearing Type Ball
• Drive Type Direct
• Height 21 in
• Width 21 in
• Max. Depth 16 in
• Housing Dia. w/Mtg. Flange 21 in
• Housing Dia. w/o Mtg. Flange 18 1/2 in
• Inlet Dia. 18 1/2 in
• Outlet Dia. 18 1/2 in
• Mounting Position Vertical/Horizontal
• Housing Material Steel
• Housing Finish Baked Enamel
• Number of Blades 6
• Blade Material Aluminum
• Companion Flange Stock No. 4C718
• Dimension A 18 1/2 in
• Dimension B 19 7/8 in
• Dimension C 21 in
• Dimension D 16 in
• Standards UL Listed and AMCA Certified

Manufacturer Details

• Manufacturer: Dayton
• Condensed Mfg Number: 166003A
• MPN: 166003A

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414596590
• GDS Category Name: Tubeaxial Fans with Motor
• GDS Family Name: Tubeaxial Fans and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101604
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 04
• UNSPSC Commodity Name: Fans
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
